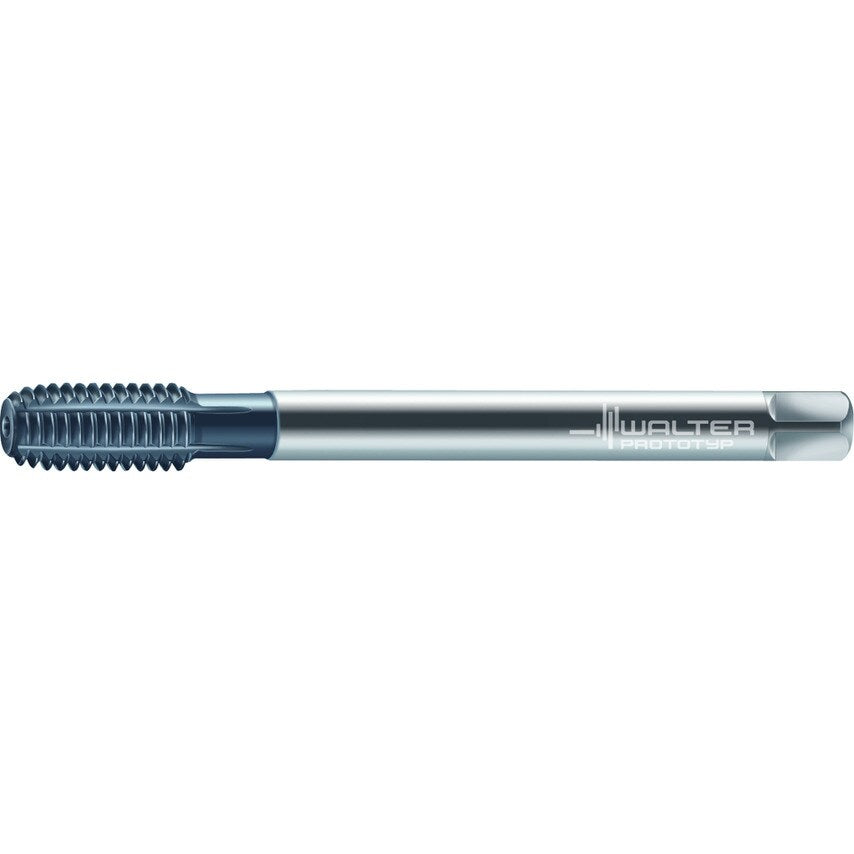

HSS-E machine thread formers Protodyn SF C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole TICN Suitable for through hole M 16 P=0.0787in
| Driving Square Length | 12mm |
| Tool Designation | D7066706-M16 |
| Thread Pitch | 2mm |
| Connection Diameter | 12mm |
| Finish/Coating | TiCN |
| Material | HSSE |
| MFR Part No. | 5201824 |
| Cutting Edge Length | 25mm |
| Thread Size | M 16 |
| Number of Grooves | 6 |
| Clamping Width | 9mm |
| Usable Length | 68mm |
| Functional Length | 110mm |
