Proto save
£2.31
Loading...

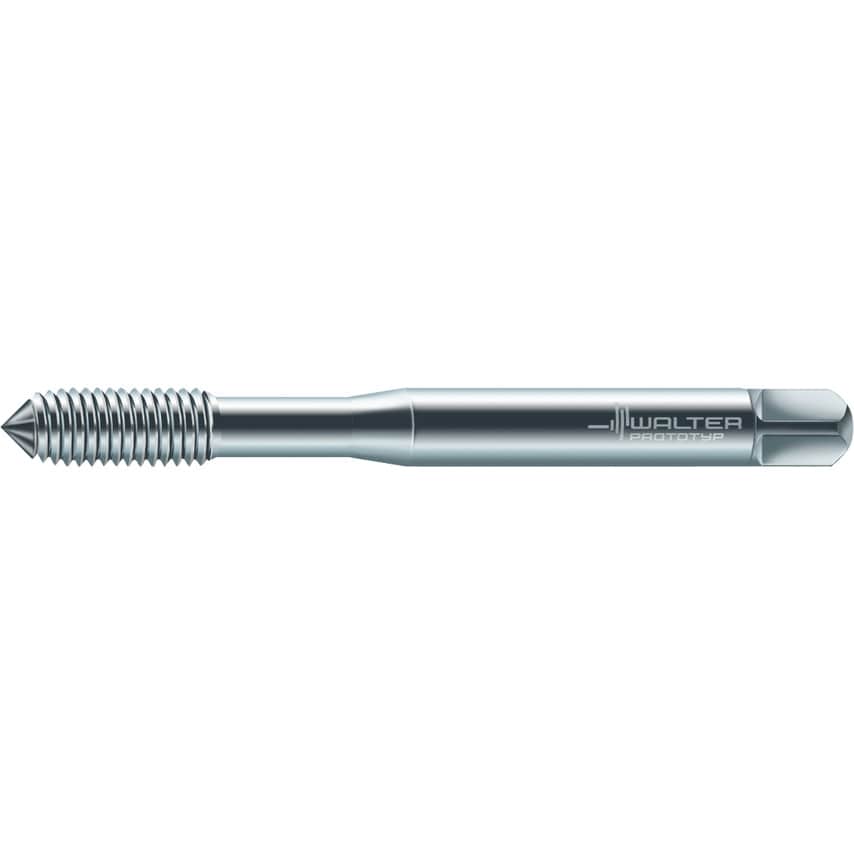

HSS-E machine thread formers Protodyn C C = 2-3xTP (semi-bottom chamfer) 3xD M/6GX DIN 2174 Suitable for blind hole Suitable for through hole M 6 P=0.0394in
| Connection Diameter | 6mm |
| Thread Size | M 6 |
| Tool Designation | D7063100-M6 |
| MFR Part No. | 5201833 |
| Thread Pitch | 1mm |
| Driving Square Length | 8mm |
| Functional Length | 80mm |
| Material | HSSE |
| Clamping Width | 4.9mm |
| Cutting Edge Length | 15mm |
| Number of Grooves | 5 |
| Usable Length | 30mm |
