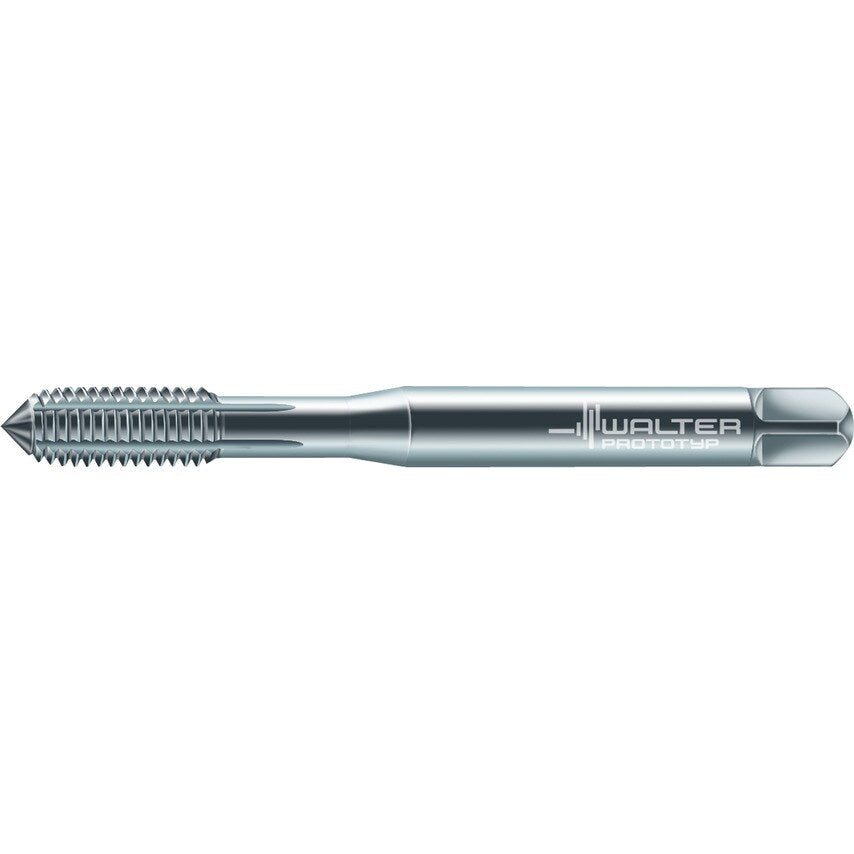

HSS-E machine thread formers Protodyn SC C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6GX DIN 2174 Suitable for blind hole Suitable for through hole M 5 P=0.0315in
| Number of Grooves | 5 |
| Driving Square Length | 8mm |
| Clamping Width | 4.9mm |
| Tool Designation | D7063700-M5 |
| Thread Size | M 5 |
| Usable Length | 25mm |
| Connection Diameter | 6mm |
| MFR Part No. | 5201828 |
| Functional Length | 70mm |
| Thread Pitch | 0.8mm |
| Cutting Edge Length | 13mm |
