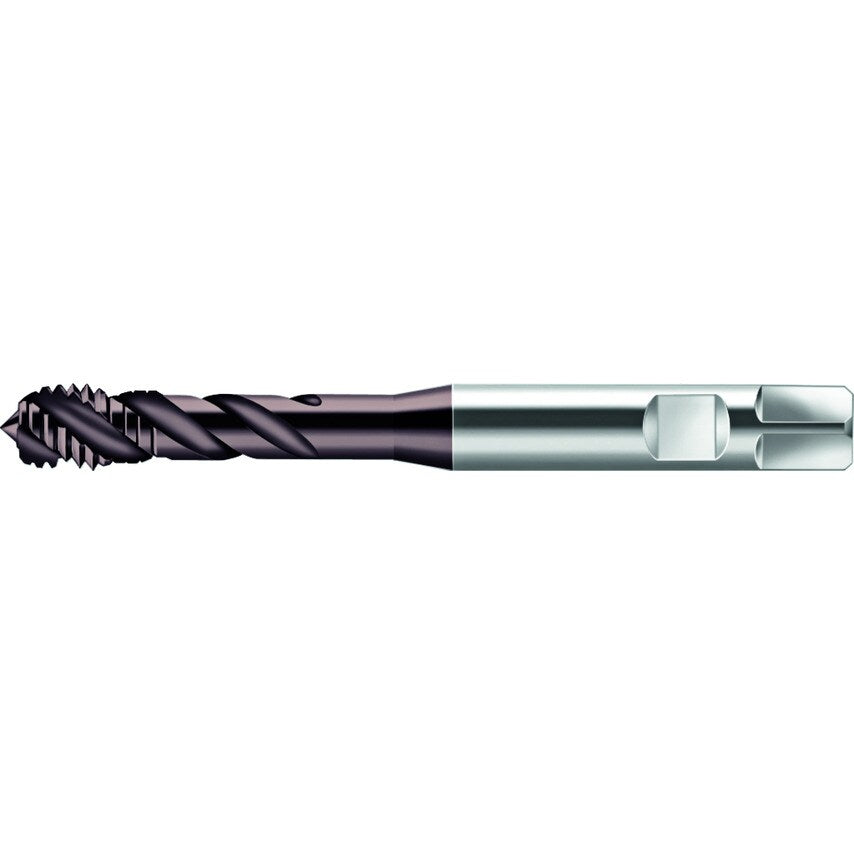

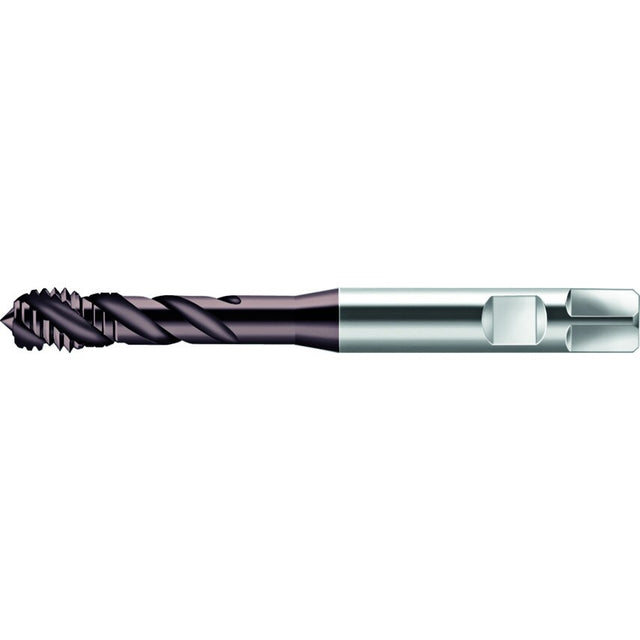

HSS-E machine taps Paradur Synch. C = 2-3xTP (semi-bottom chamfer) 2,5xD MF/6HX ~DIN 371 right hand flute 40 Suitable for blind hole THL MF 10x1.25 P=0.0492in
| Thread Pitch | 1.25mm |
| MFR Part No. | 5101764 |
| Clamping Width | 8mm |
| Cutting Edge Length | 13.5mm |
| Driving Square Length | 11mm |
| Thread Size | MF 10x1.25 |
| Connection Diameter | 10mm |
| Number of Grooves | 3 |
| Usable Length | 39mm |
| Tool Designation | S2156302-M10X1.25 |
| Functional Length | 100mm |
