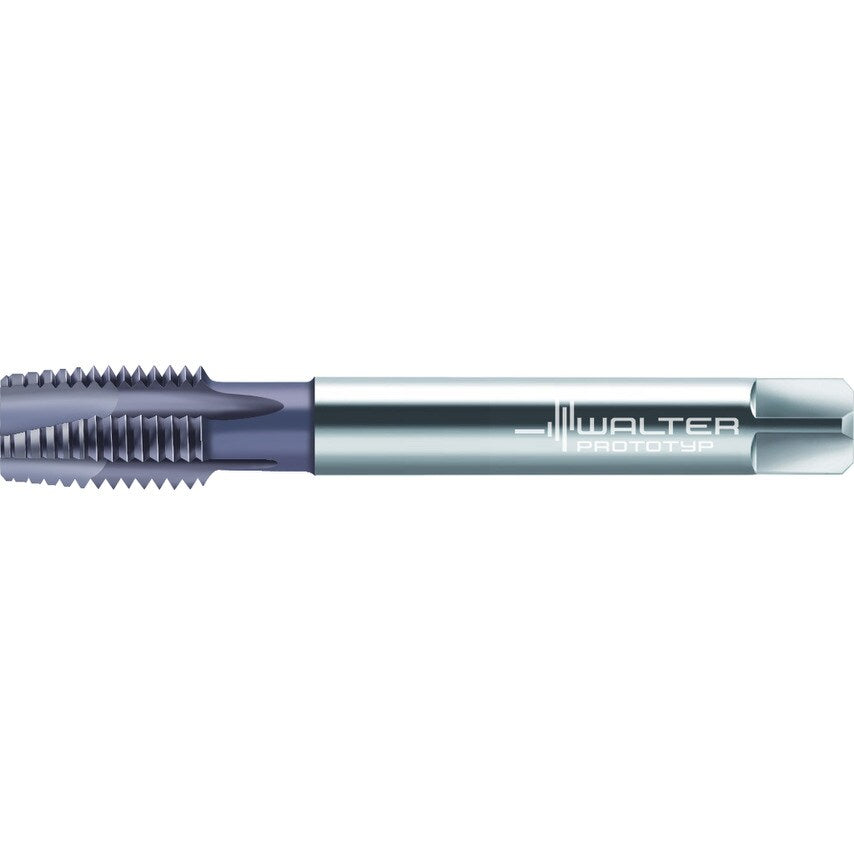

HSS-E PM machine taps Prototex TiNi B = 3.5-5xTP (plug chamfer) 2xD UNF/3B ANSI B94.9 Suitable for through hole TICN UNF 3/4-16 P=16
| Tool Designation | A2325766-UNF3/4 |
| Shank Diameter | 0.59in |
| Overall Length | 4.25in |
| Clamping Width | 0.44in |
| Cutting Edge Length | 1.18in |
| Number of Grooves | 4 |
| MFR Part No. | 5934204 |
| Usable Length | 2.38in |
| Driving Square Length | 0.69in |
| Thread Size | UNF 3/4-16 |
