£4.42

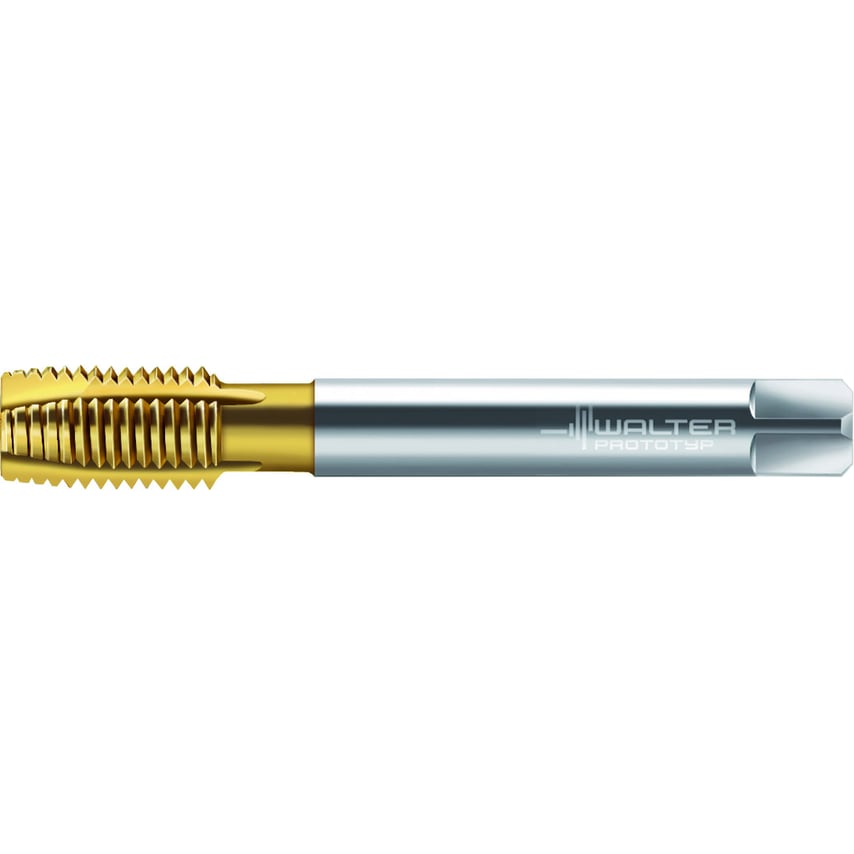

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD MF/6H DIN 374 Suitable for through hole TIN MF 12x1 P=0.0394in
Thread Size | M12 |
Usable Length | 73mm |
Thread Standard | Metric |
Thread Pitch | 1mm |
ISO Category | O |
Tool Designation | P2136005-M12X1 |
Finish/Coating | TiN |
Material | HSSE |
Tap Type | Spiral Point |
MFR Part No. | 6149387 |
ISO Designation | P2136005-M12X1 |
Dimensions Standard | DIN 374 |
Clamping Width | 7mm |
Pitch | 1mm |
Shank Diameter | 9mm |
Cutting Edge Length | 21mm |
Driving Square Length | 10mm |
Series | Prototex\u00ae X\u00b7pert P |
Overall Length | 100mm |
Number of Grooves | 4 |
