£2.97

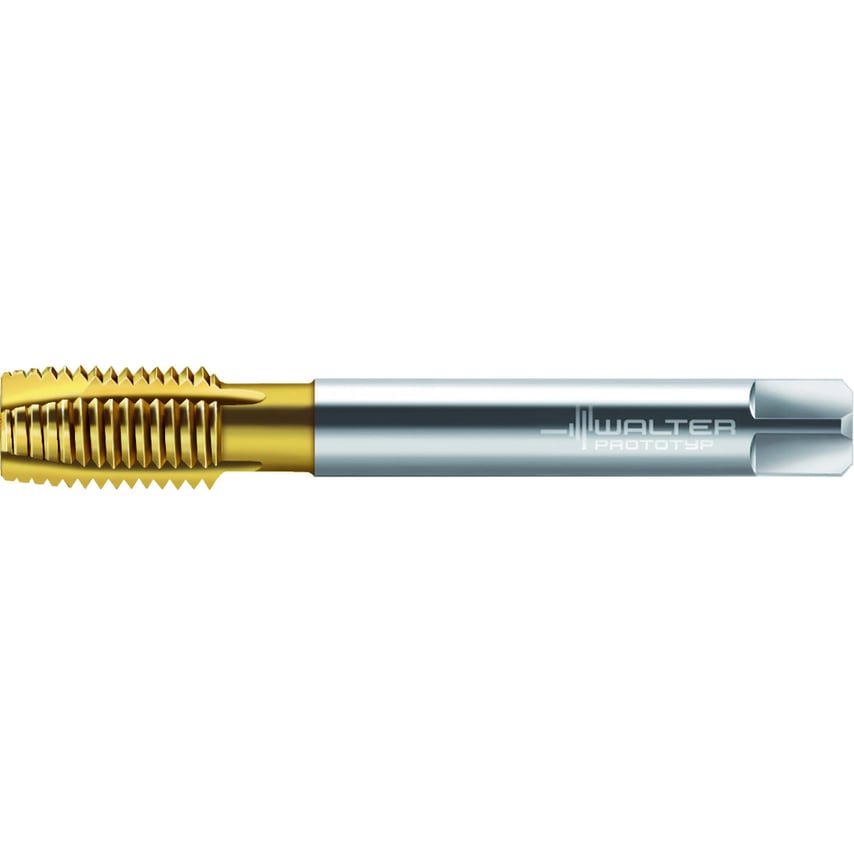

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD MF/6H DIN 374 Suitable for through hole TIN MF 8x1 P=0.0394in
MFR Part No. | 6149383 |
Pitch | 1mm |
Tap Type | Spiral Point |
Finish/Coating | TiN |
Material | HSSE |
Usable Length | 67mm |
ISO Category | O |
Shank Diameter | 6mm |
Number of Grooves | 3 |
Tool Designation | P2136005-M8X1 |
Thread Standard | Metric |
Series | Prototex\u00ae X\u00b7pert P |
Driving Square Length | 8mm |
Thread Pitch | 1mm |
Dimensions Standard | DIN 374 |
Thread Size | M8 |
Overall Length | 90mm |
ISO Designation | P2136005-M8X1 |
Clamping Width | 4.9mm |
Cutting Edge Length | 18mm |
