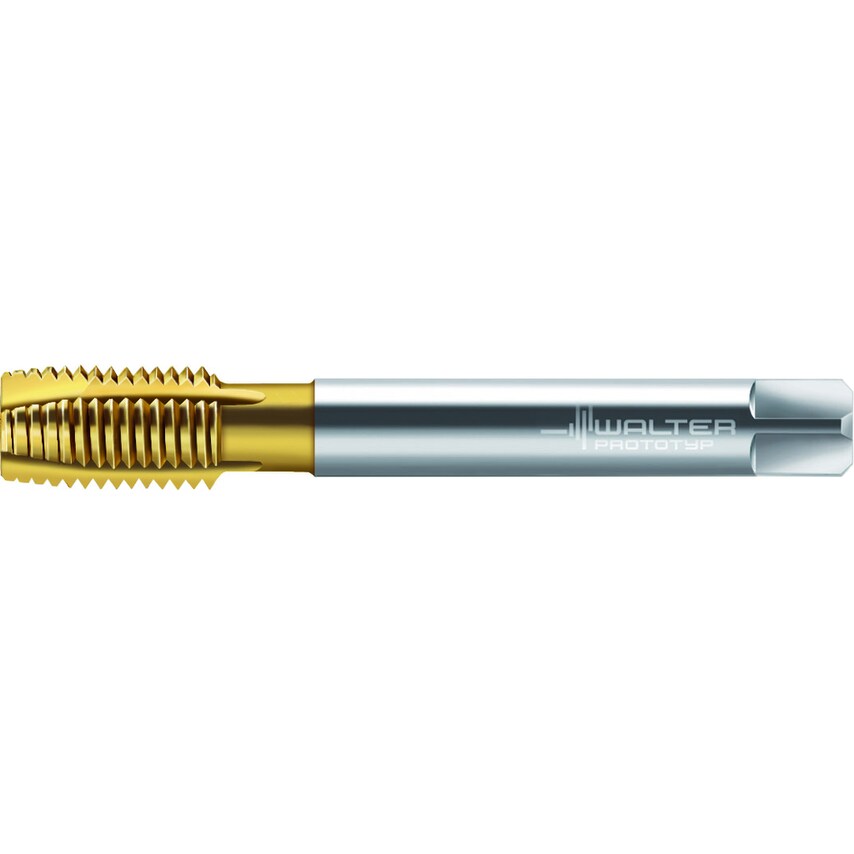

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD MF/6H DIN 374 Suitable for through hole TIN MF 10x1 P=0.0394in
| Finish/Coating | TiN |
| Dimensions Standard | DIN 374 |
| ISO Designation | P2136005-M10X1 |
| Cutting Edge Length | 20mm |
| Pitch | 1mm |
| Thread Standard | Metric |
| ISO Category | O |
| Shank Diameter | 7mm |
| Thread Size | M10 |
| MFR Part No. | 6149385 |
| Tap Type | Spiral Point |
| Clamping Width | 5.5mm |
| Series | Prototex\u00ae X\u00b7pert P |
| Thread Pitch | 1mm |
| Driving Square Length | 8mm |
| Material | HSSE |
| Overall Length | 90mm |
| Number of Grooves | 3 |
| Tool Designation | P2136005-M10X1 |
| Usable Length | 67mm |
