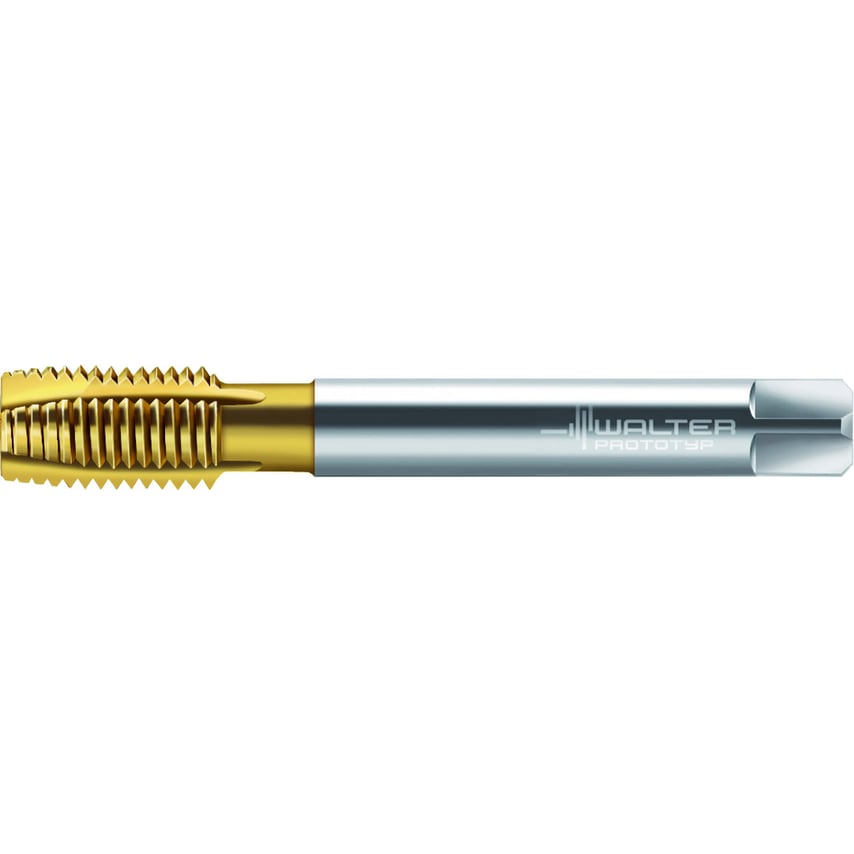

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD MF/6H DIN 374 Suitable for through hole TIN MF 16x1.5 P=0.0591in
| Thread Size | M16 |
| ISO Designation | P2136005-M16X1.5 |
| Cutting Edge Length | 21mm |
| Overall Length | 100mm |
| Number of Grooves | 4 |
| ISO Category | O |
| Finish/Coating | TiN |
| MFR Part No. | 6149390 |
| Thread Standard | Metric |
| Series | Prototex\u00ae X\u00b7pert P |
| Usable Length | 58mm |
| Driving Square Length | 12mm |
| Shank Diameter | 12mm |
| Tool Designation | P2136005-M16X1.5 |
| Pitch | 1.5mm |
| Thread Pitch | 1.5mm |
| Dimensions Standard | DIN 374 |
| Tap Type | Spiral Point |
| Clamping Width | 9mm |
| Material | HSSE |
