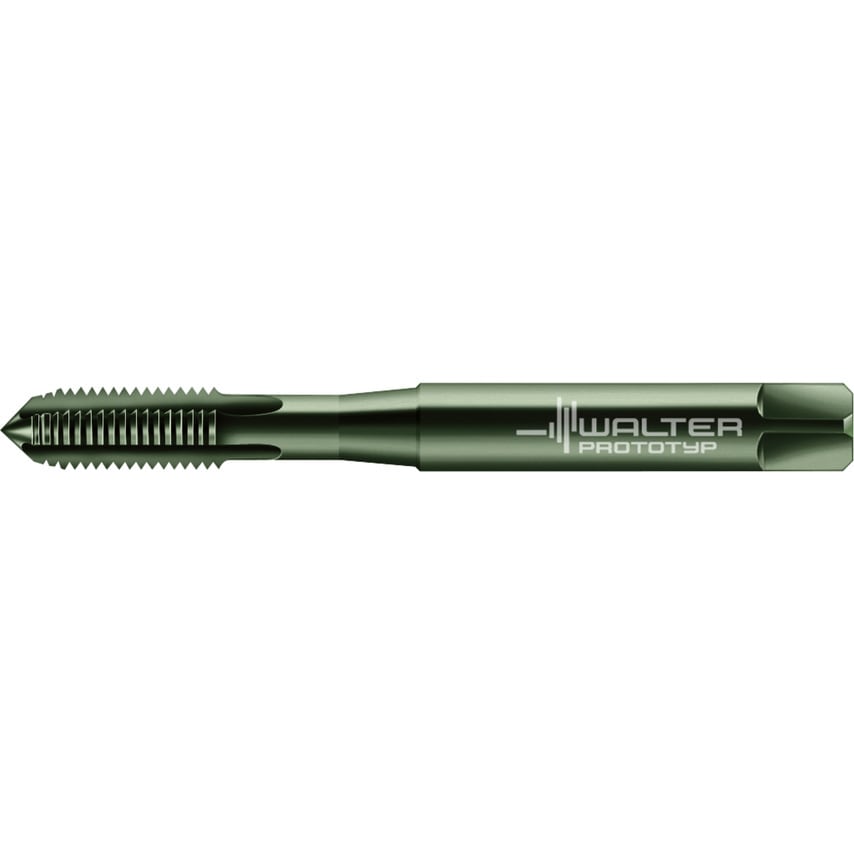

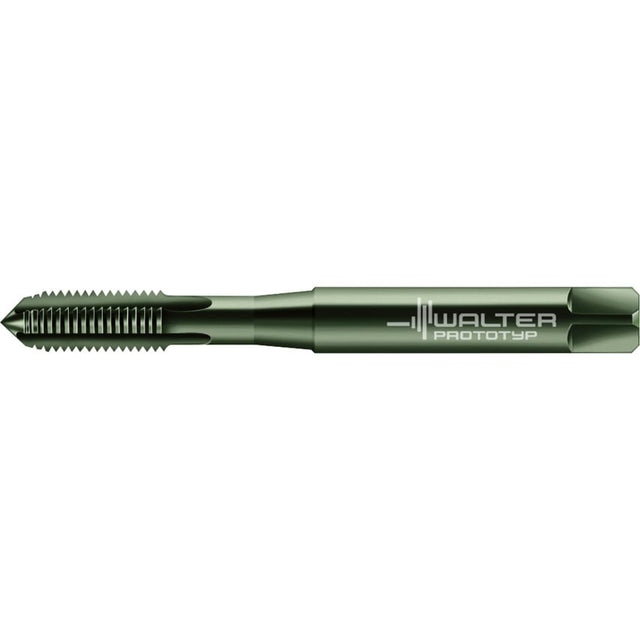

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 371 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole NID M 6 P=0.0394in
| Usable Length | 30mm |
| Connection Diameter | 6mm |
| Cutting Edge Length | 15mm |
| Driving Square Length | 8mm |
| Functional Length | 80mm |
| Tool Designation | E20314-M6 |
| Thread Pitch | 1mm |
| Number of Grooves | 4 |
| Clamping Width | 4.9mm |
| Thread Size | M 6 |
| MFR Part No. | 5603073 |
