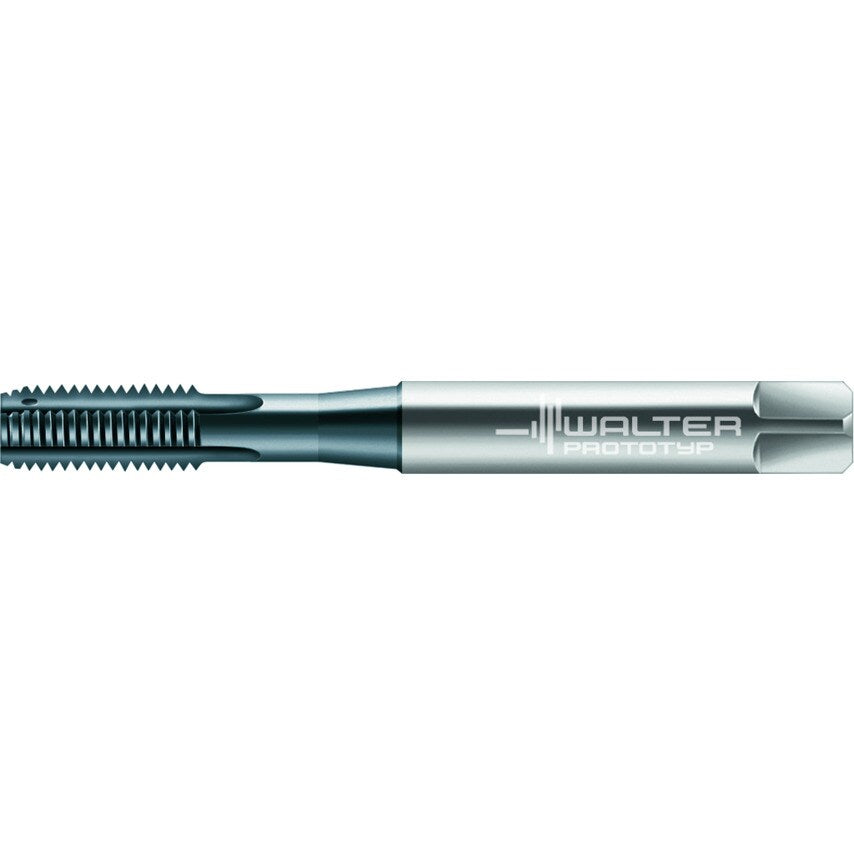

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 371 neutral (straight) flute 0 Suitable for blind hole TICN M 10 P=0.0591in
| Cutting Edge Length | 20mm |
| Thread Size | M 10 |
| Tool Designation | E2031446-M10 |
| MFR Part No. | 5603133 |
| Thread Pitch | 1.5mm |
| Usable Length | 39mm |
| Number of Grooves | 4 |
| Clamping Width | 8mm |
| Functional Length | 100mm |
| Connection Diameter | 10mm |
| Driving Square Length | 11mm |
