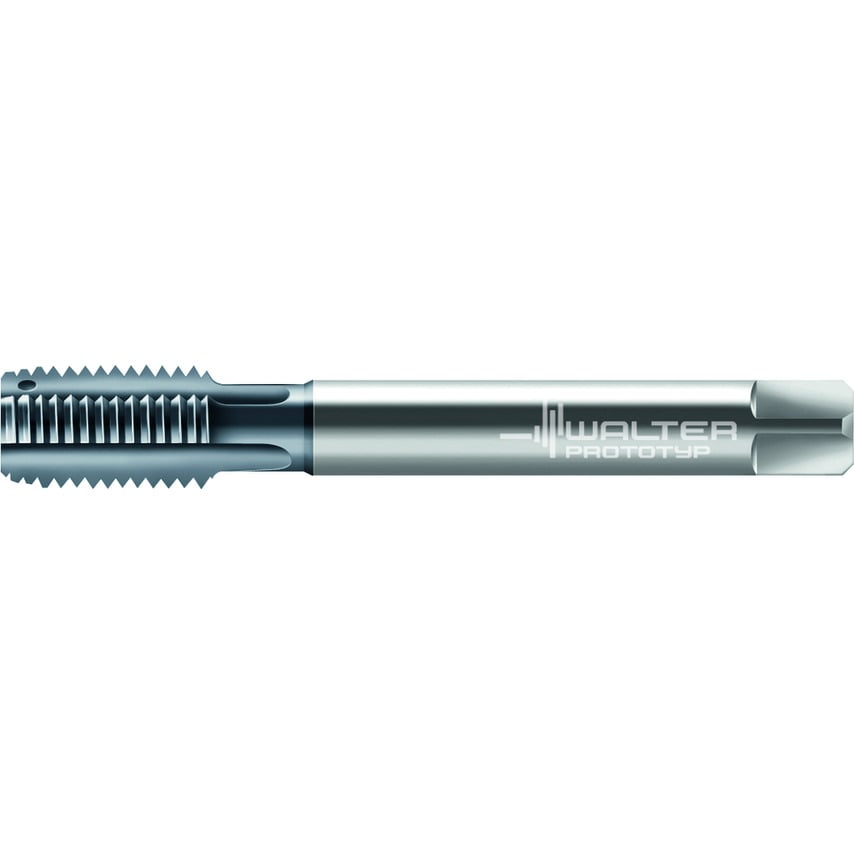

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 376 neutral (straight) flute 0 Suitable for blind hole TICN M 16 P=0.0787in
| Thread Size | M 16 |
| Tool Designation | E2036446-M16 |
| Cutting Edge Length | 25mm |
| Functional Length | 110mm |
| Number of Grooves | 4 |
| MFR Part No. | 5603135 |
| Thread Pitch | 2mm |
| Usable Length | 68mm |
| Driving Square Length | 12mm |
| Connection Diameter | 12mm |
| Clamping Width | 9mm |
