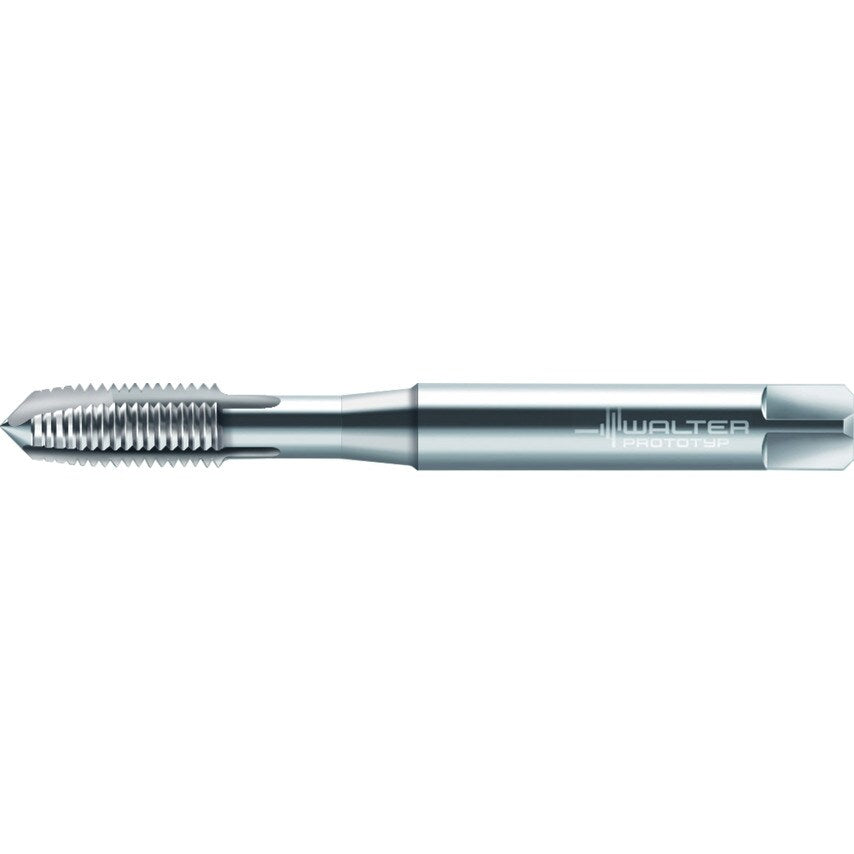

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD EGUNF/3B DIN 2184-1 Suitable for through hole EGUNF 1/4-28 P=28
| Shank Diameter | 8mm |
| Usable Length | 35mm |
| Overall Length | 90mm |
| Tool Designation | P233009-EGUNF1/4 |
| Thread Size | EGUNF 1/4-28 |
| Cutting Edge Length | 18mm |
| Tap Type | Machine Tap |
| Number of Grooves | 3 |
| Driving Square Length | 9mm |
| Thread Standard | UN |
| Material | HSSE |
| Clamping Width | 6.2mm |
| MFR Part No. | 6149466 |
