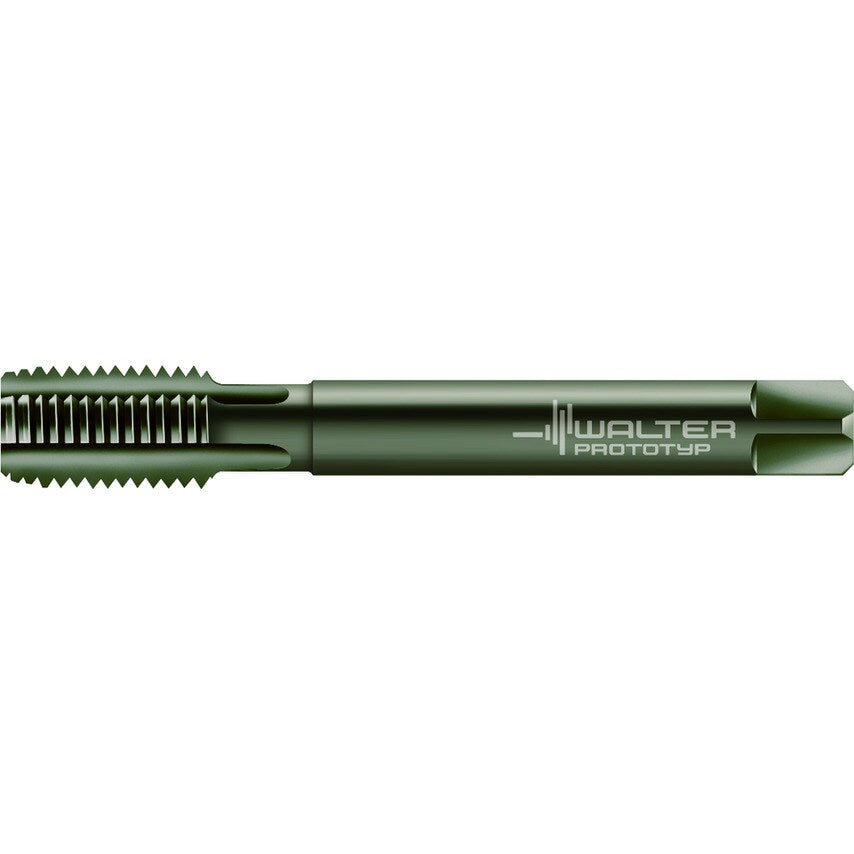

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD MF/6HX DIN 374 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole NID MF 12x1.25 P=0.0492in
| Thread Pitch | 1.25mm |
| Number of Grooves | 4 |
| Tool Designation | E21364-M12X1.25 |
| Thread Size | MF 12x1.25 |
| Driving Square Length | 10mm |
| Clamping Width | 7mm |
| Connection Diameter | 9mm |
| Cutting Edge Length | 21mm |
| MFR Part No. | 5603142 |
| Functional Length | 100mm |
| Usable Length | 73mm |
