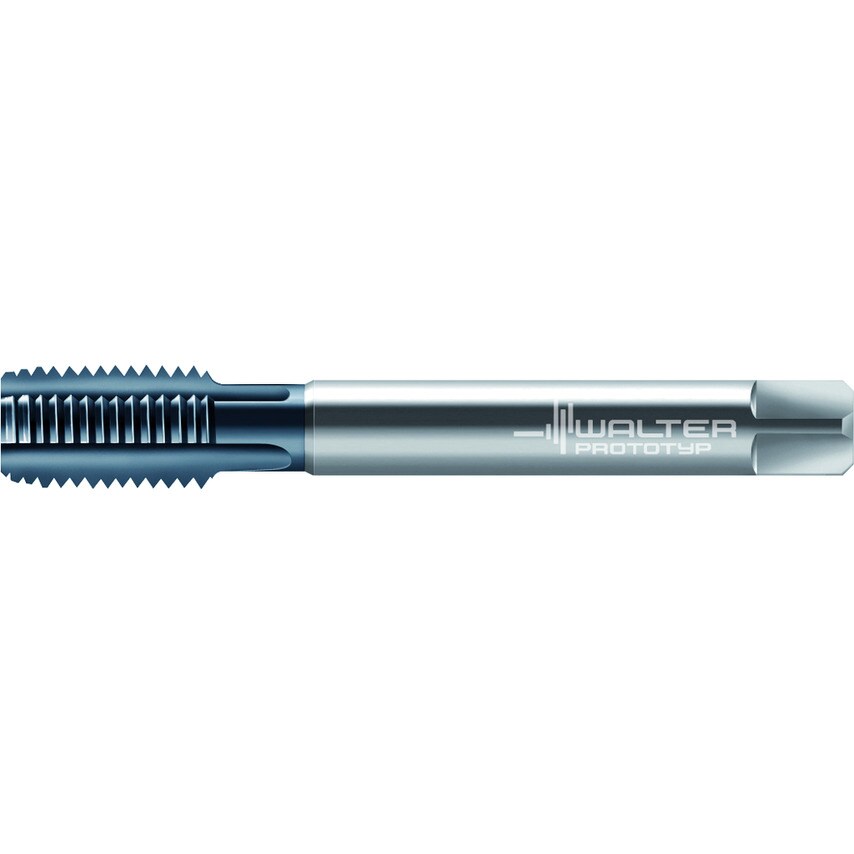

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD MF/6HX DIN 374 neutral (straight) flute 0 Suitable for blind hole TICN MF 10x1 P=0.0394in
| Clamping Width | 5.5mm |
| Connection Diameter | 7mm |
| Number of Grooves | 4 |
| Cutting Edge Length | 20mm |
| Thread Pitch | 1mm |
| Usable Length | 67mm |
| Driving Square Length | 8mm |
| Thread Size | MF 10x1 |
| MFR Part No. | 5603178 |
| Functional Length | 90mm |
| Tool Designation | E2136416-M10X1 |
