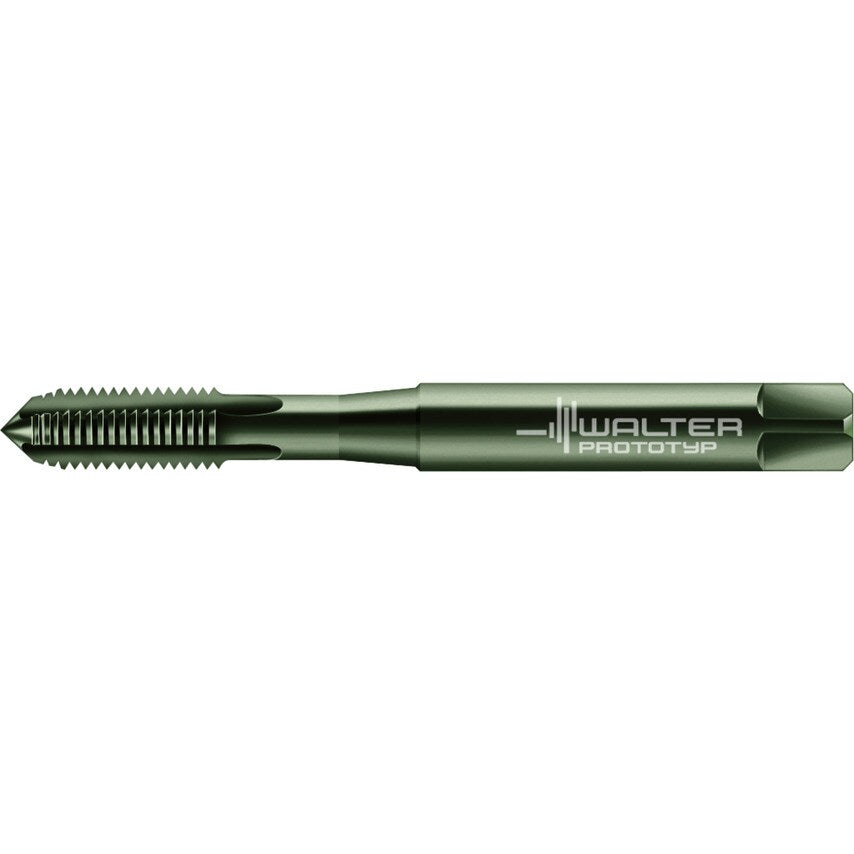

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD UNF/2B DIN 2184-1 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole NID UNF #10-32 P=32
| Number of Grooves | 4 |
| Functional Length | 70mm |
| MFR Part No. | 5603200 |
| Connection Diameter | 6mm |
| Clamping Width | 4.9mm |
| Cutting Edge Length | 13mm |
| Tool Designation | E23314-UNF10 |
| Driving Square Length | 8mm |
| Usable Length | 25mm |
| Thread Size | UNF #10-32 |
