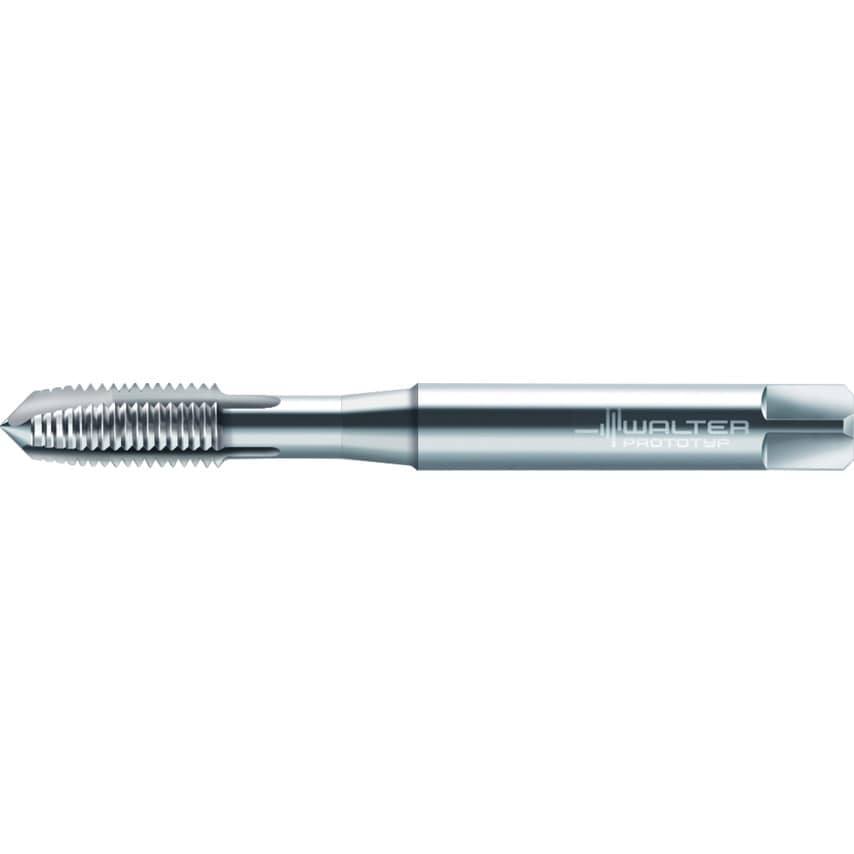

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD BSW/MEDIUM DIN 2184-1 Suitable for through hole BSW 3/8-16 P=16
| Threads Per Inch | 16 |
| Tool Designation | P28210-BSW3/8 |
| Shank Diameter | 10mm |
| Clamping Width | 8mm |
| MFR Part No. | 6149525 |
| Number of Grooves | 3 |
| Usable Length | 39mm |
| Cutting Edge Length | 20mm |
| Thread Size | BSW 3/8-16 |
| Driving Square Length | 11mm |
| Tap Type | Machine Tap |
| Thread Standard | BSW |
| Material | HSSE |
| Overall Length | 100mm |
