£2.44
Loading...

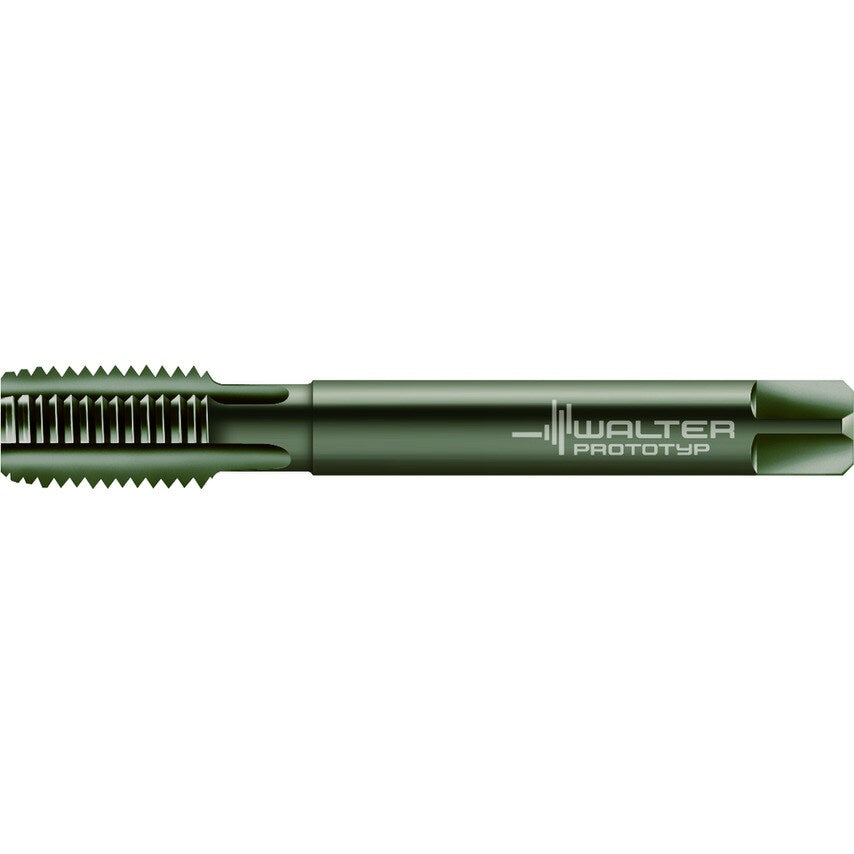

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD UNF/2B DIN 2184-1 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole NID UNF 3/8-24 P=24
| Number of Grooves | 4 |
| Cutting Edge Length | 20mm |
| Connection Diameter | 7mm |
| Functional Length | 100mm |
| MFR Part No. | 5603203 |
| Driving Square Length | 8mm |
| Tool Designation | E23364-UNF3/8 |
| Clamping Width | 5.5mm |
| Usable Length | 77mm |
| Thread Size | UNF 3/8-24 |
