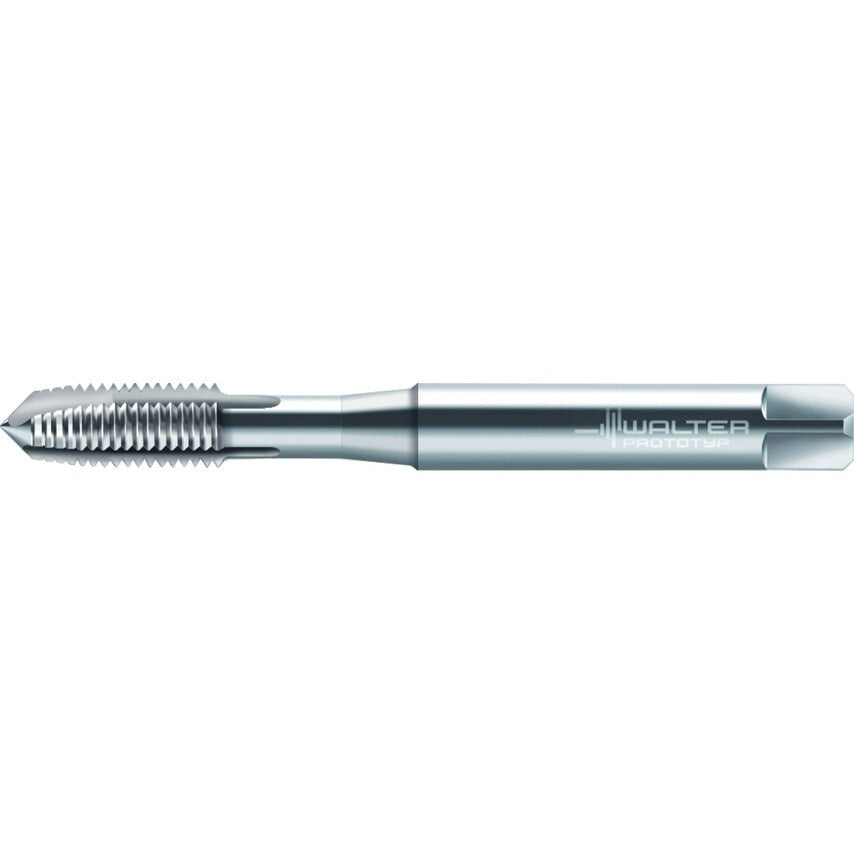

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD BSW/MEDIUM DIN 2184-1 Suitable for through hole BSW 3/16-24 P=24
| Threads Per Inch | 24 |
| Shank Diameter | 6mm |
| Number of Grooves | 2 |
| Thread Size | BSW 3/16-24 |
| Tool Designation | P28210-BSW3/16 |
| MFR Part No. | 6149524 |
| Cutting Edge Length | 13mm |
| Usable Length | 25mm |
| Clamping Width | 4.9mm |
| Material | HSSE |
| Thread Standard | BSW |
| Overall Length | 70mm |
| Driving Square Length | 8mm |
