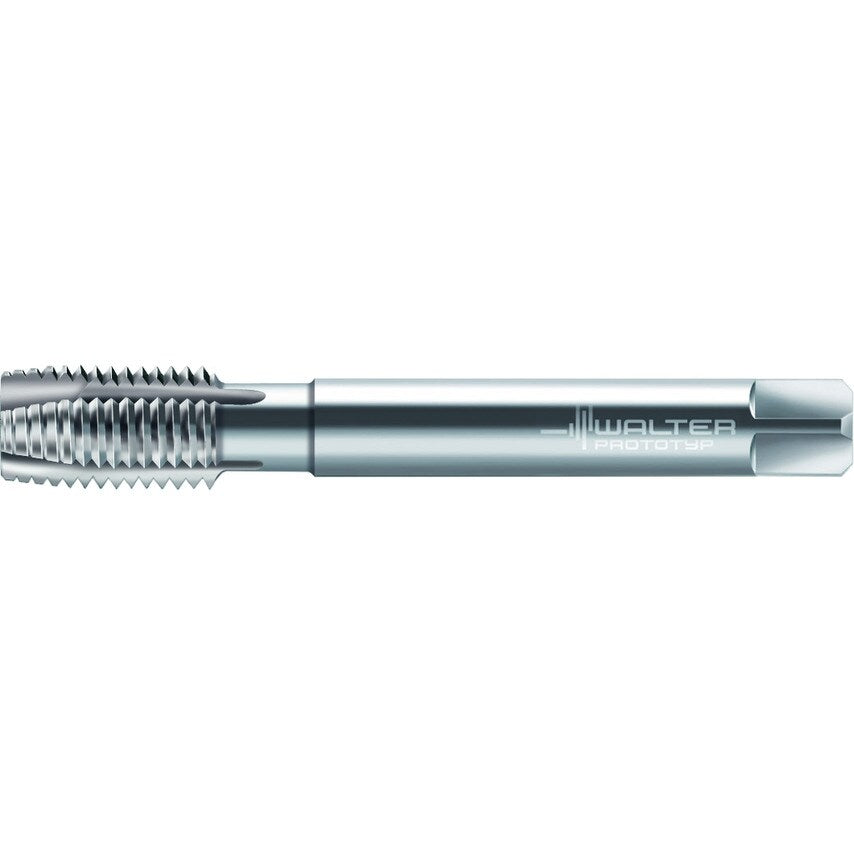

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD BSW/MEDIUM DIN 2184-1 Suitable for through hole BSW 7/16-14 P=14
| Tap Type | Machine Tap |
| Number of Grooves | 3 |
| Thread Size | BSW 7/16-14 |
| Thread Standard | BSW |
| Shank Diameter | 8mm |
| Threads Per Inch | 14 |
| Tool Designation | P28360-BSW7/16 |
| MFR Part No. | 6149531 |
| Cutting Edge Length | 20mm |
| Driving Square Length | 9mm |
| Overall Length | 100mm |
| Usable Length | 76mm |
| Clamping Width | 6.2mm |
| Material | HSSE |
