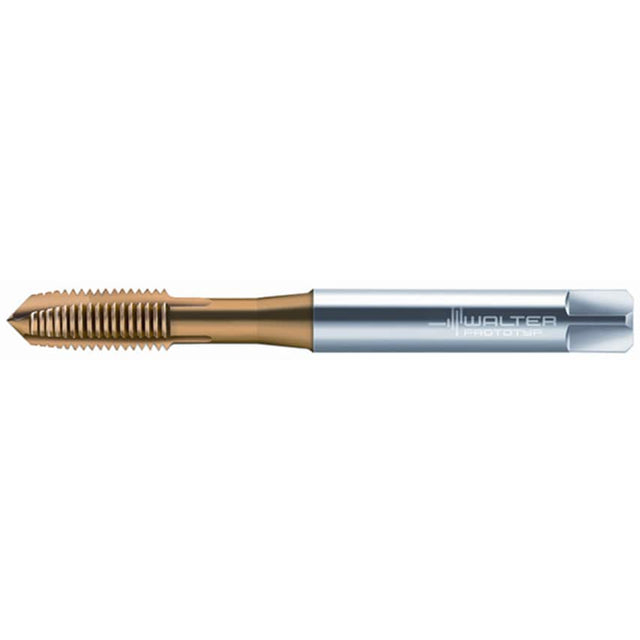

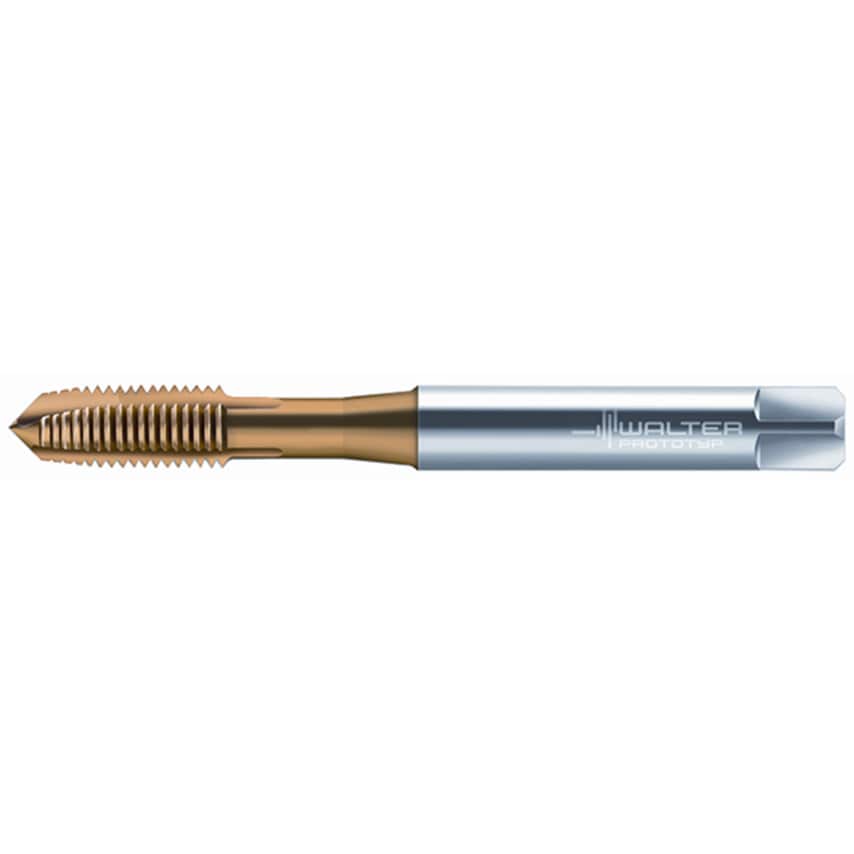

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD M/6HX DIN 371 Suitable for through hole TIN M 8 P=0.0492in
| Shank Diameter | 8mm |
| Dimensions Standard | DIN 371 |
| Thread Standard | Metric |
| Cutting Edge Length | 18mm |
| Number of Grooves | 3 |
| Thread Size | M8 |
| Finish/Coating | TiN |
| MFR Part No. | 6149675 |
| Tool Designation | M2021305-M8 |
| ISO Category | M | P |
| Tap Type | Spiral Point |
| Product Type | Machine Taps |
| Material | HSSE |
| Overall Length | 90mm |
| Clamping Width | 6.2mm |
| Usable Length | 35mm |
| Pitch | 1.25mm |
| Series | Prototex\u00ae X\u00b7pert M |
| ISO Designation | M2021305-M8 |
| Thread Pitch | 1.25mm |
