£26.40
Loading...

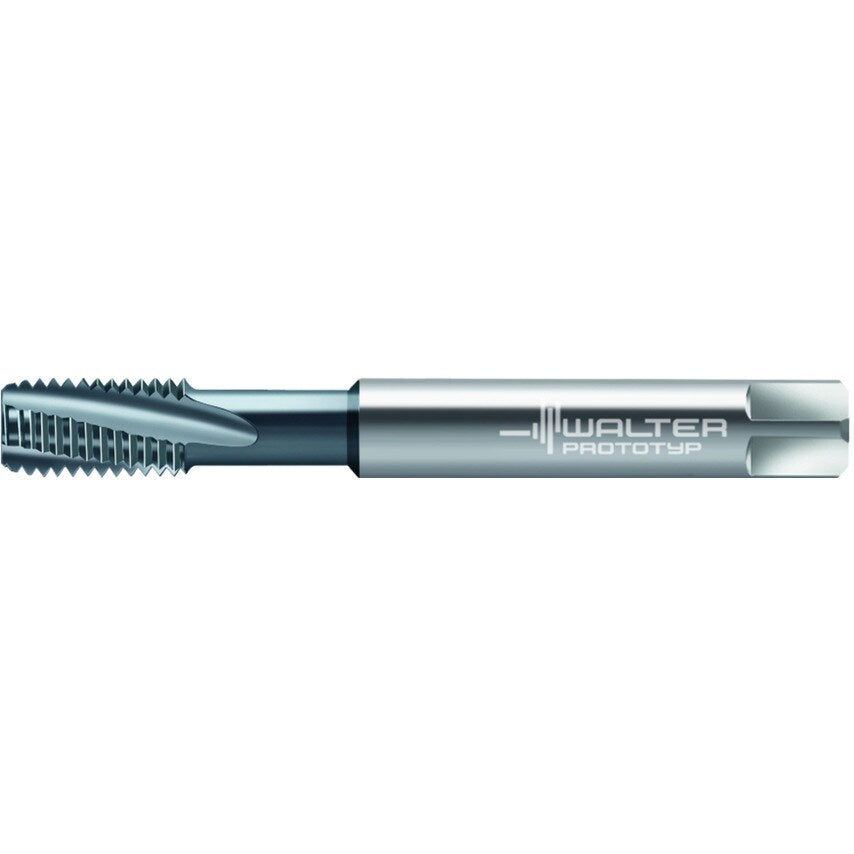

Solid carbide machine taps Paradur HSC C = 2-3xTP (semi-bottom chamfer) 2xD MF/6HX ~DIN 371 right hand flute 15 Suitable for blind hole TICN MF 10x1 P=0.0394in
| Tool Designation | 8141056-M10X1 |
| Usable Length | 39mm |
| Number of Grooves | 3 |
| Thread Size | MF 10x1 |
| Clamping Width | 8mm |
| Cutting Edge Length | 25mm |
| Functional Length | 90mm |
| Driving Square Length | 11mm |
| Thread Pitch | 1mm |
| Connection Diameter | 10mm |
| MFR Part No. | 5827984 |
