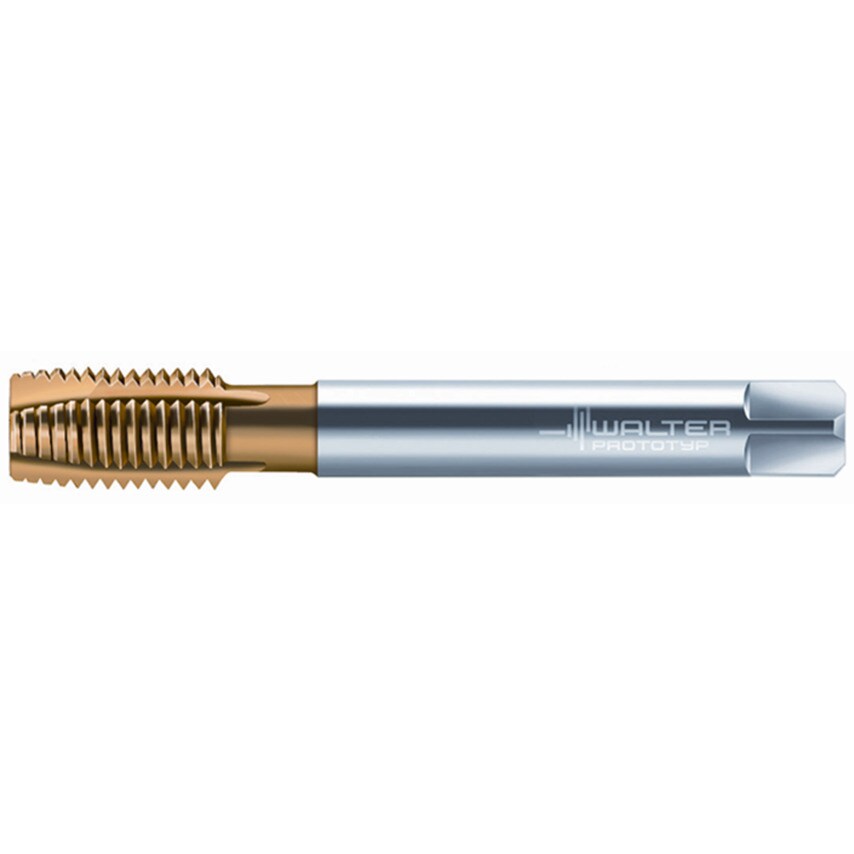

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD M/6HX DIN 376 Suitable for through hole TIN M 14 P=0.0787in
| Tool Designation | M2026305-M14 |
| Material | HSSE |
| Thread Pitch | 2mm |
| ISO Category | M | P |
| Number of Grooves | 4 |
| Dimensions Standard | DIN 376 |
| Product Type | Machine Taps |
| Cutting Edge Length | 25mm |
| Overall Length | 110mm |
| Finish/Coating | TiN |
| MFR Part No. | 6149716 |
| Clamping Width | 9mm |
| Thread Size | M14 |
| Shank Diameter | 11mm |
| Usable Length | 81mm |
| Series | Prototex\u00ae X\u00b7pert M |
| Pitch | 2mm |
| Tap Type | Spiral Point |
| ISO Designation | M2026305-M14 |
| Thread Standard | Metric |
