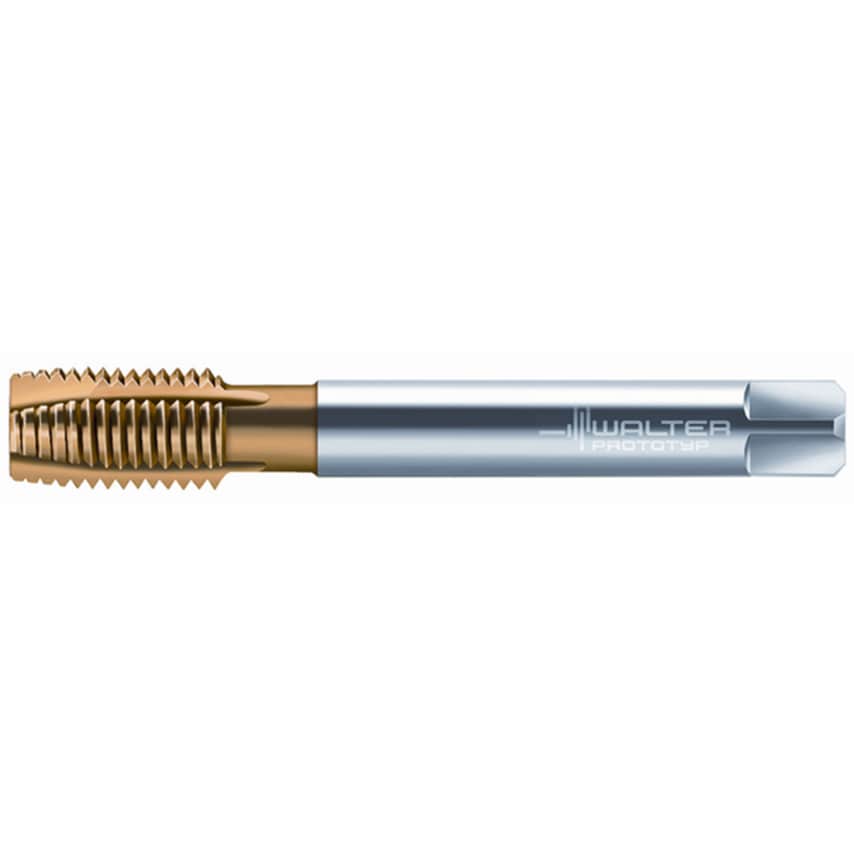

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD M/6HX DIN 376 Suitable for through hole TIN M 12 P=0.0689in
| Thread Standard | Metric |
| Usable Length | 83mm |
| Clamping Width | 7mm |
| Material | HSSE |
| Cutting Edge Length | 23mm |
| Pitch | 1.75mm |
| Product Type | Machine Taps |
| MFR Part No. | 6149715 |
| Shank Diameter | 9mm |
| Tap Type | Spiral Point |
| Overall Length | 110mm |
| Dimensions Standard | DIN 376 |
| Finish/Coating | TiN |
| Thread Pitch | 1.75mm |
| Tool Designation | M2026305-M12 |
| Number of Grooves | 4 |
| Thread Size | M12 |
| ISO Designation | M2026305-M12 |
| ISO Category | M | P |
| Series | Prototex\u00ae X\u00b7pert M |
