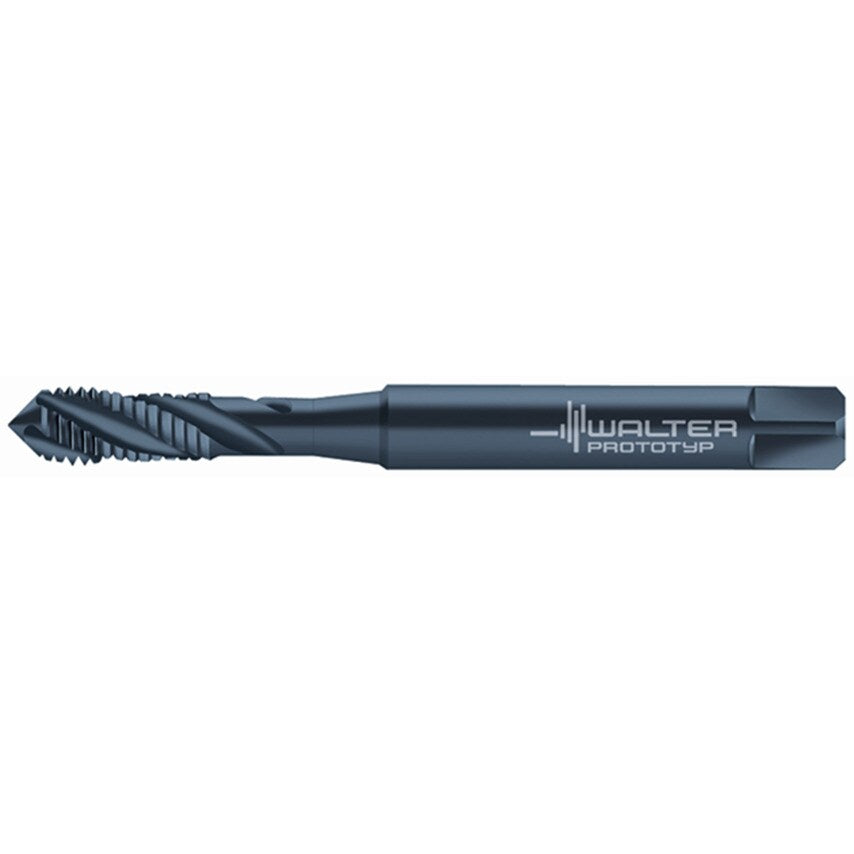

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX DIN 371 right hand flute 40 Suitable for blind hole VAP M 1.6 P=0.0138in
| Thread Pitch | 0.35mm |
| Cutting Edge Length | 6mm |
| Tool Designation | M20513-M1.6 |
| Usable Length | 6mm |
| Material | HSSE |
| Clamping Width | 2.1mm |
| Driving Square Length | 5mm |
| Finish/Coating | VAP |
| Thread Size | M 1.6 |
| Connection Diameter | 2.5mm |
| Functional Length | 40mm |
| MFR Part No. | 6149731 |
| Number of Grooves | 3 |
