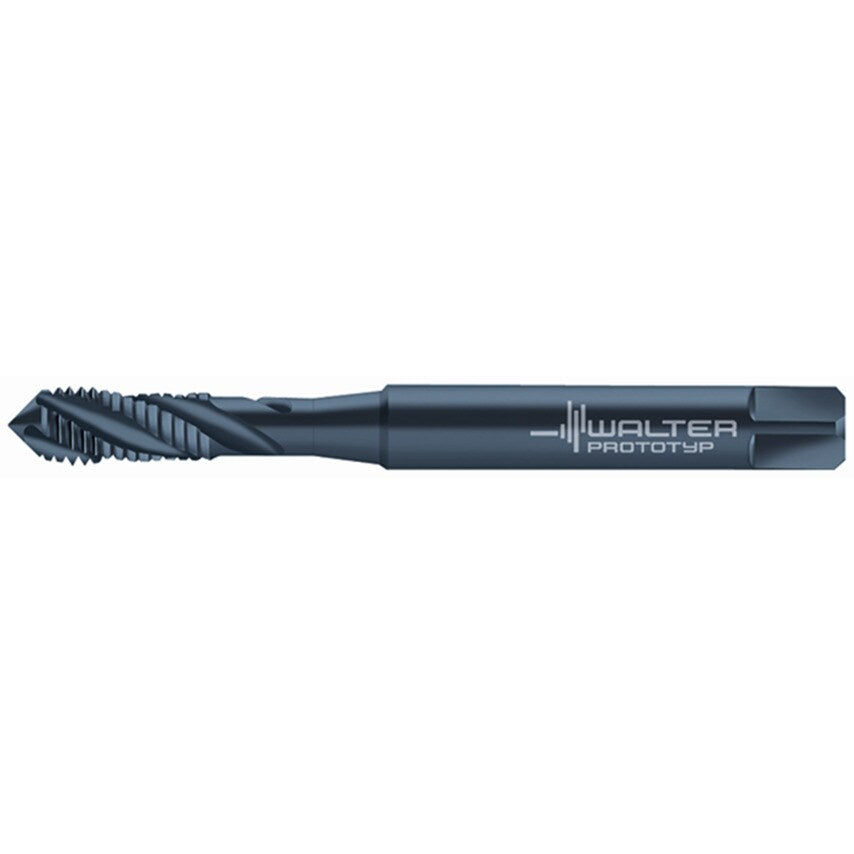

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX DIN 371 right hand flute 40 Suitable for blind hole VAP M 10 P=0.0591in
| Finish/Coating | VAP |
| Product Type | Machine Taps |
| Number of Grooves | 3 |
| MFR Part No. | 6149743 |
| Usable Length | 39mm |
| Functional Length | 100mm |
| Driving Square Length | 11mm |
| Tap Type | Spiral Flute |
| Dimensions Standard | DIN 371 |
| Cutting Edge Length | 15mm |
| Clamping Width | 8mm |
| Tool Designation | M20513-M10 |
| Material | HSSE |
| Thread Size | M10 |
| Thread Standard | Metric |
| Connection Diameter | 10mm |
| Thread Pitch | 1.5mm |
