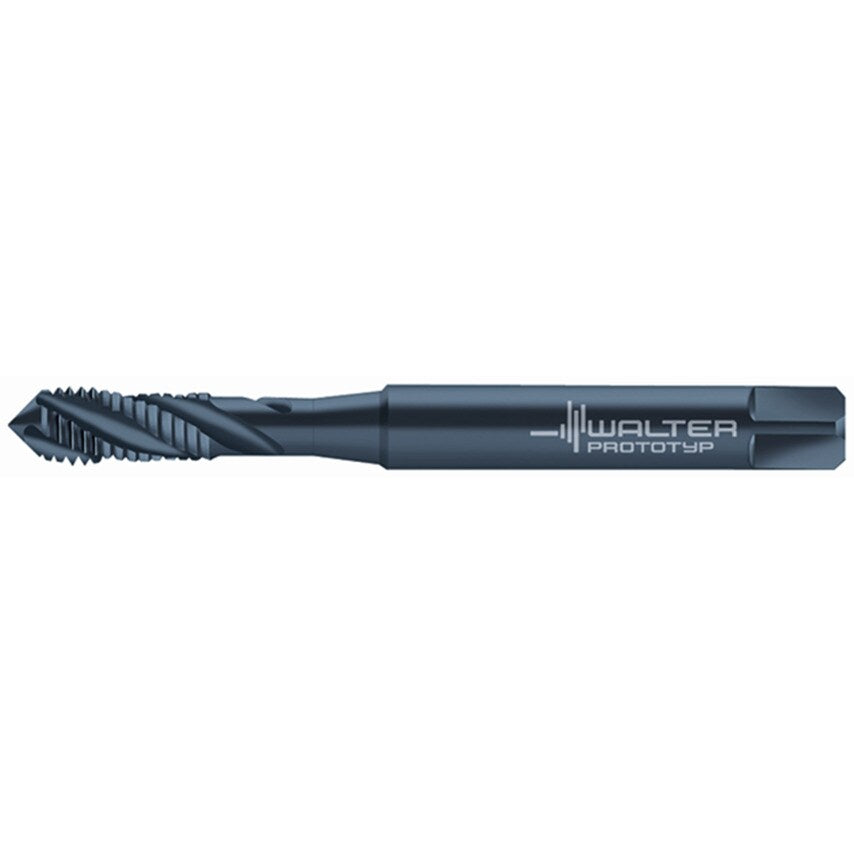

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX DIN 371 right hand flute 40 Suitable for blind hole VAP M 8 P=0.0492in
| Dimensions Standard | DIN 371 |
| Thread Standard | Metric |
| Connection Diameter | 8mm |
| Usable Length | 35mm |
| Thread Size | M8 |
| Material | HSSE |
| Number of Grooves | 3 |
| Tap Type | Spiral Flute |
| Cutting Edge Length | 12mm |
| MFR Part No. | 6149742 |
| Finish/Coating | VAP |
| Driving Square Length | 9mm |
| Functional Length | 90mm |
| Clamping Width | 6.2mm |
| Thread Pitch | 1.25mm |
| Product Type | Machine Taps |
| Tool Designation | M20513-M8 |
