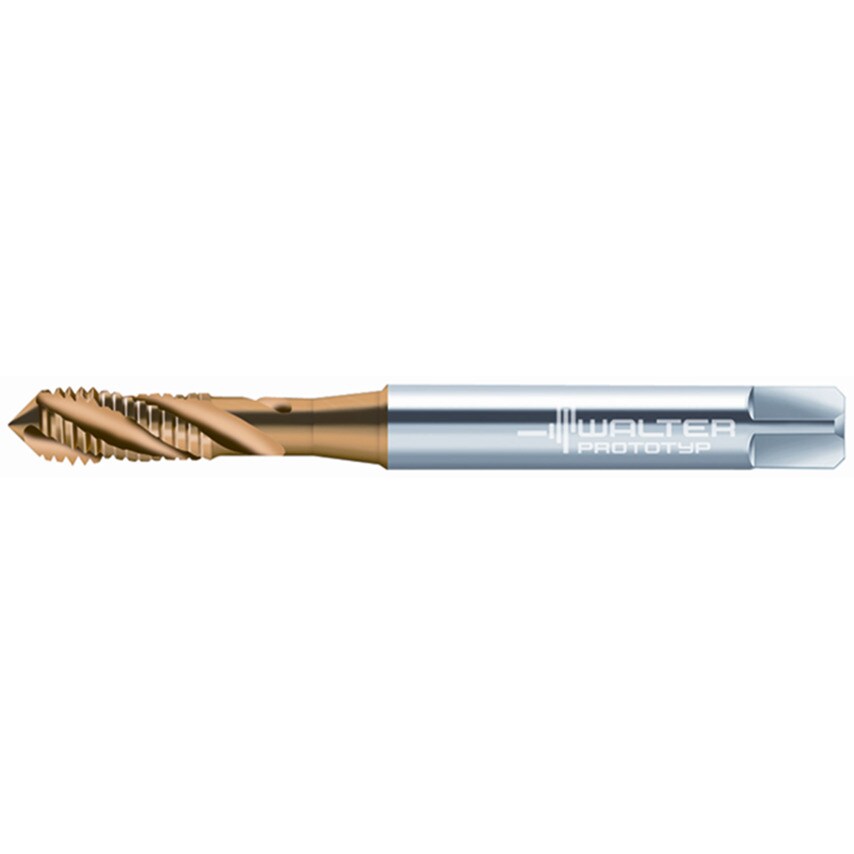

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX DIN 371 right hand flute 40 Suitable for blind hole TIN M 10 P=0.0591in
| Dimensions Standard | DIN 371 |
| Thread Pitch | 1.5mm |
| Tap Type | Spiral Flute |
| Material | HSSE |
| Pitch | 1.5mm |
| Tool Designation | M2051305-M10 |
| ISO Designation | M2051305-M10 |
| Finish/Coating | TiN |
| Series | Paradur\u00ae X\u00b7pert M |
| Thread Standard | Metric |
| Thread Size | M10 |
| Number of Grooves | 3 |
| Clamping Width | 8mm |
| Usable Length | 39mm |
| ISO Category | M | P |
| Product Type | Machine Taps |
| Connection Diameter | 10mm |
| MFR Part No. | 6149762 |
| Functional Length | 100mm |
| Cutting Edge Length | 15mm |
