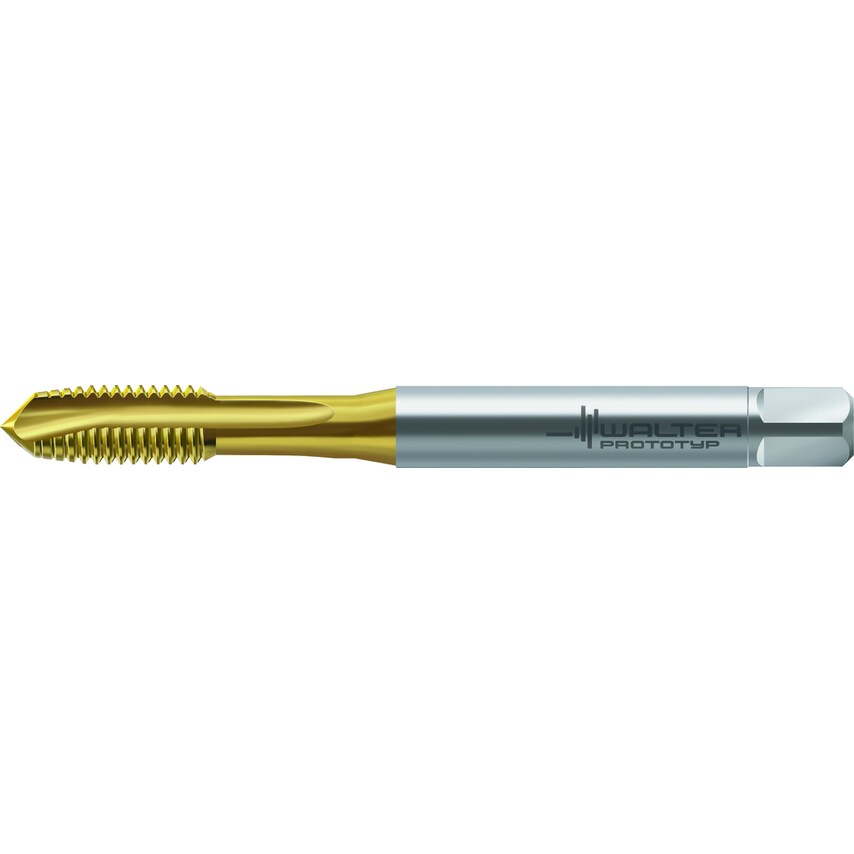

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD M/6H DIN 371 Suitable for through hole TIN M 4 P=0.0276in
| Tool Designation | P2031005-M4 |
| Material | HSSE |
| Series | Prototex\u00ae X\u00b7pert P |
| Clamping Width | 3.4mm |
| Thread Pitch | 0.7mm |
| Usable Length | 21mm |
| Number of Grooves | 3 |
| MFR Part No. | 6149174 |
| ISO Category | O |
| Tap Type | Spiral Point |
| Thread Size | M4 |
| Shank Diameter | 4.5mm |
| Cutting Edge Length | 12mm |
| Pitch | 0.7mm |
| Overall Length | 63mm |
| Finish/Coating | TiN |
| ISO Designation | P2031005-M4 |
| Dimensions Standard | DIN 371 |
| Thread Standard | Metric |
