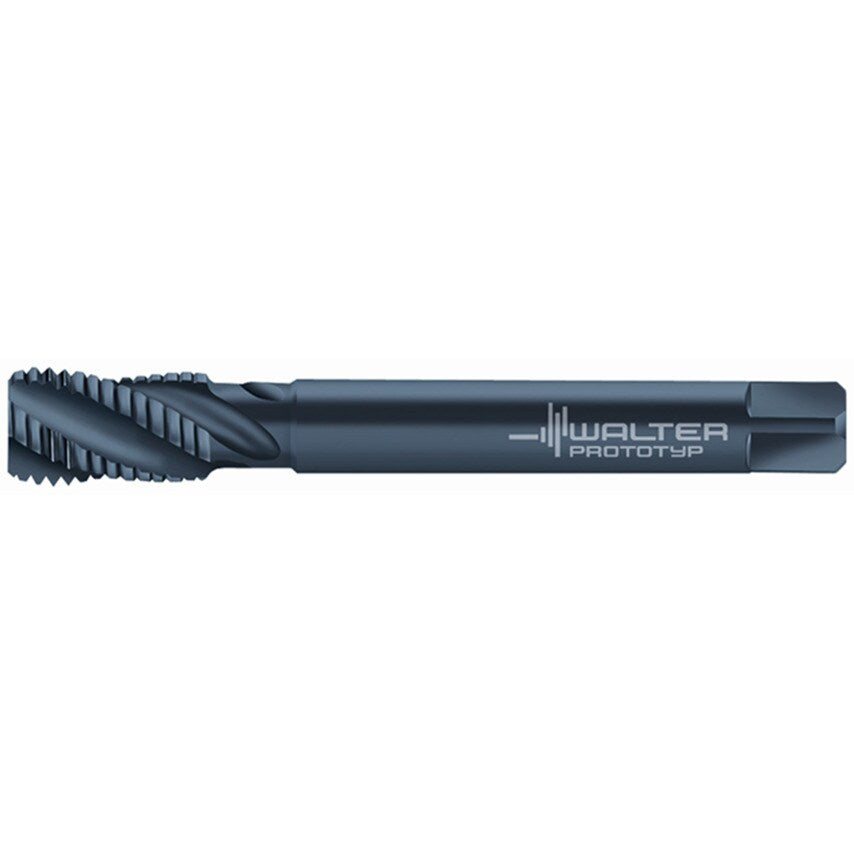

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX DIN 376 right hand flute 40 Suitable for blind hole VAP M 22 P=0.0984in
| Material | HSSE |
| Connection Diameter | 18mm |
| Thread Pitch | 2.5mm |
| Clamping Width | 14.5mm |
| Finish/Coating | VAP |
| Cutting Edge Length | 25mm |
| MFR Part No. | 6149797 |
| Functional Length | 140mm |
| Thread Size | M 22 |
| Usable Length | 93mm |
| Tool Designation | M20563-M22 |
| Number of Grooves | 4 |
