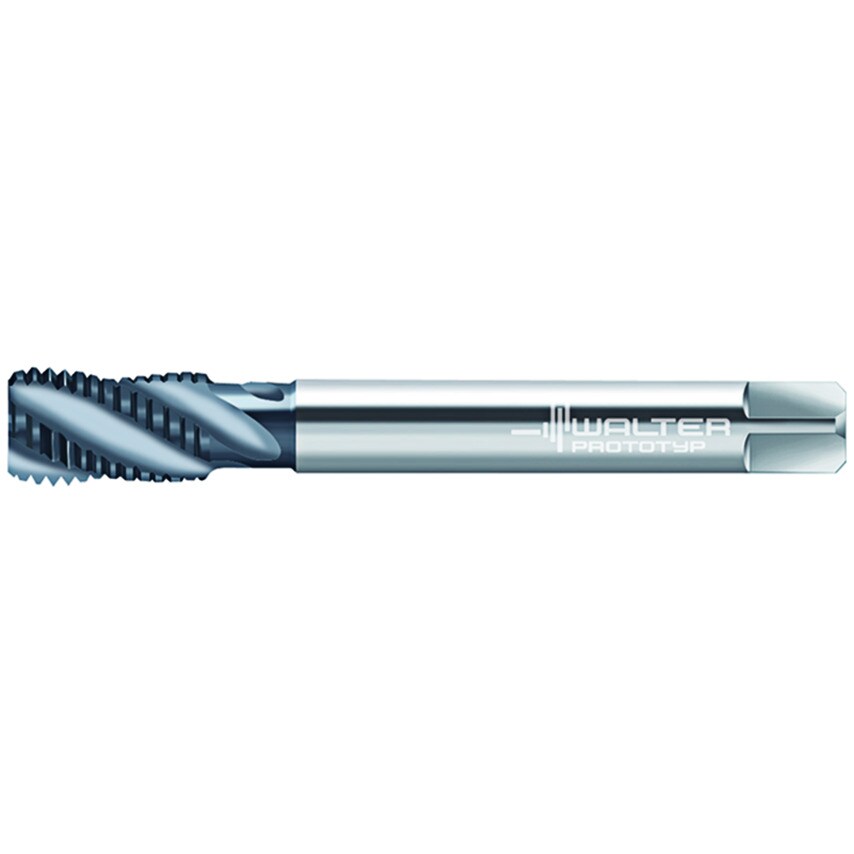

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX DIN 376 right hand flute 40 Suitable for blind hole TICN M 10 P=0.0591in
| Usable Length | 77mm |
| Clamping Width | 5.5mm |
| Thread Size | M 10 |
| Number of Grooves | 3 |
| Cutting Edge Length | 15mm |
| Thread Pitch | 1.5mm |
| Tool Designation | M2056306-M10 |
| Tap Type | Machine Tap |
| Functional Length | 100mm |
| MFR Part No. | 6149806 |
| Material | HSSE |
| Connection Diameter | 7mm |
| Finish/Coating | TiCN |
