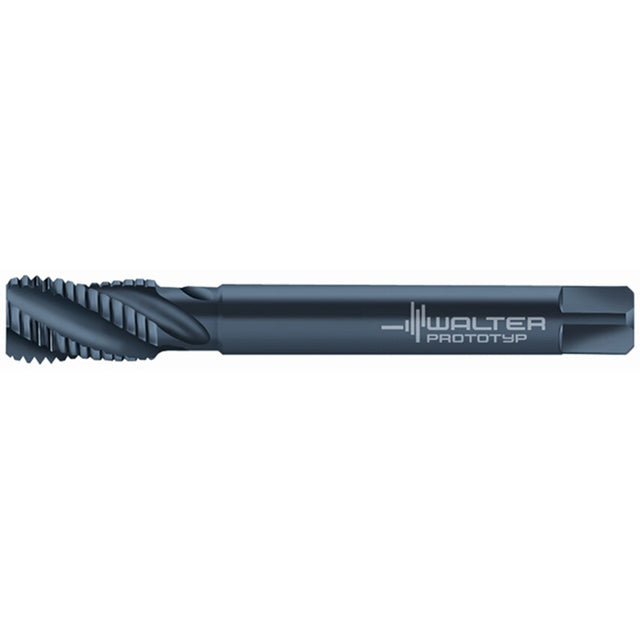

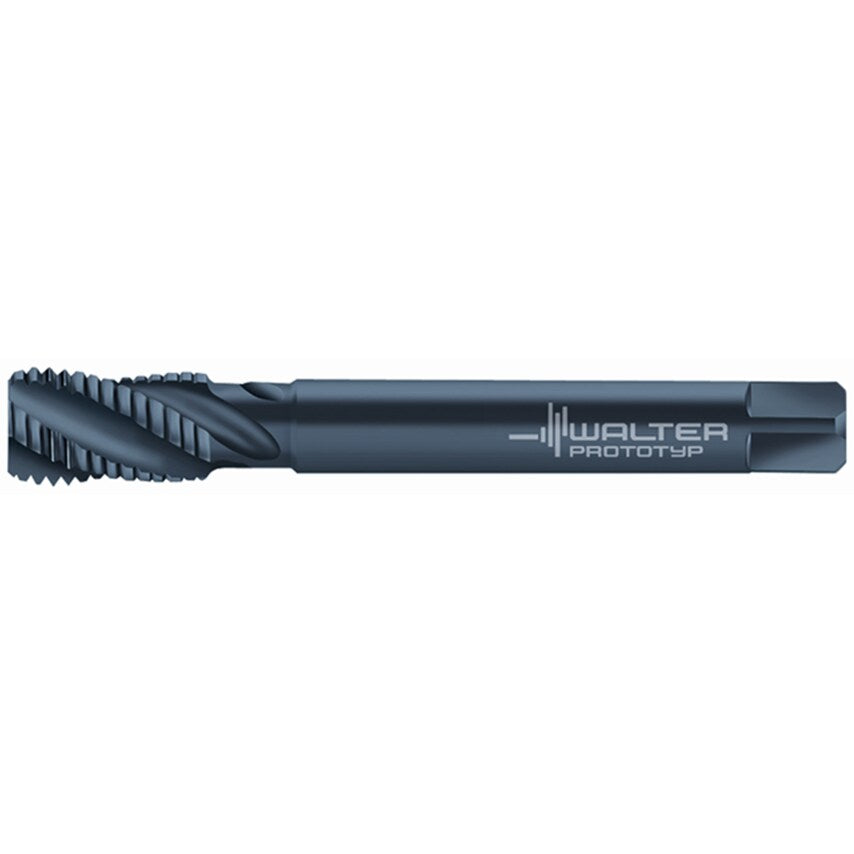

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX DIN 376 right hand flute 40 Suitable for blind hole VAP M 30 P=0.1378in
| Finish/Coating | VAP |
| Connection Diameter | 22mm |
| Tool Designation | M20563-M30 |
| Usable Length | 115mm |
| Cutting Edge Length | 35mm |
| Thread Pitch | 3.5mm |
| MFR Part No. | 6149800 |
| Thread Size | M 30 |
| Functional Length | 180mm |
| Clamping Width | 18mm |
| Material | HSSE |
| Number of Grooves | 5 |
