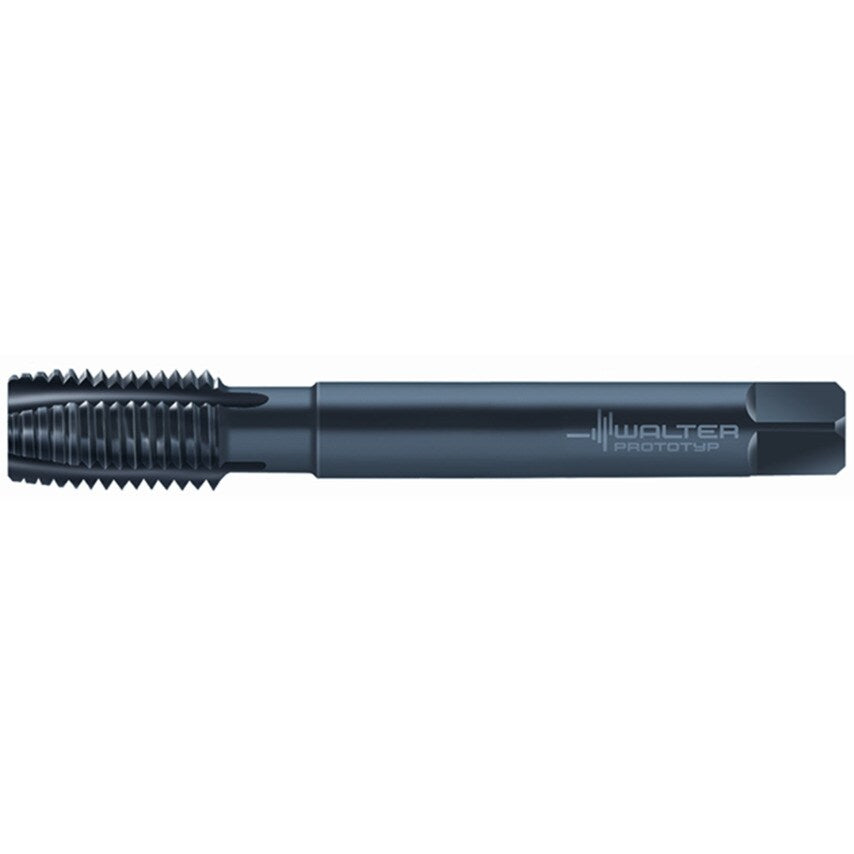

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD MF/6HX DIN 374 Suitable for through hole VAP MF 16x1.5 P=0.0591in
| Overall Length | 100mm |
| ISO Designation | M21263-M16X1.5 |
| Cutting Edge Length | 21mm |
| Dimensions Standard | DIN 374 |
| Usable Length | 58mm |
| ISO Category | M | P |
| Series | Prototex\u00ae X\u00b7pert M |
| Shank Diameter | 12mm |
| Material | HSSE |
| Thread Standard | Metric |
| Number of Grooves | 4 |
| Driving Square Length | 12mm |
| Clamping Width | 9mm |
| Finish/Coating | VAP |
| Thread Size | M16 |
| Thread Pitch | 1.5mm |
| Product Type | Machine Taps |
| MFR Part No. | 6149834 |
| Tap Type | Spiral Point |
| Pitch | 1.5mm |
| Tool Designation | M21263-M16X1.5 |
