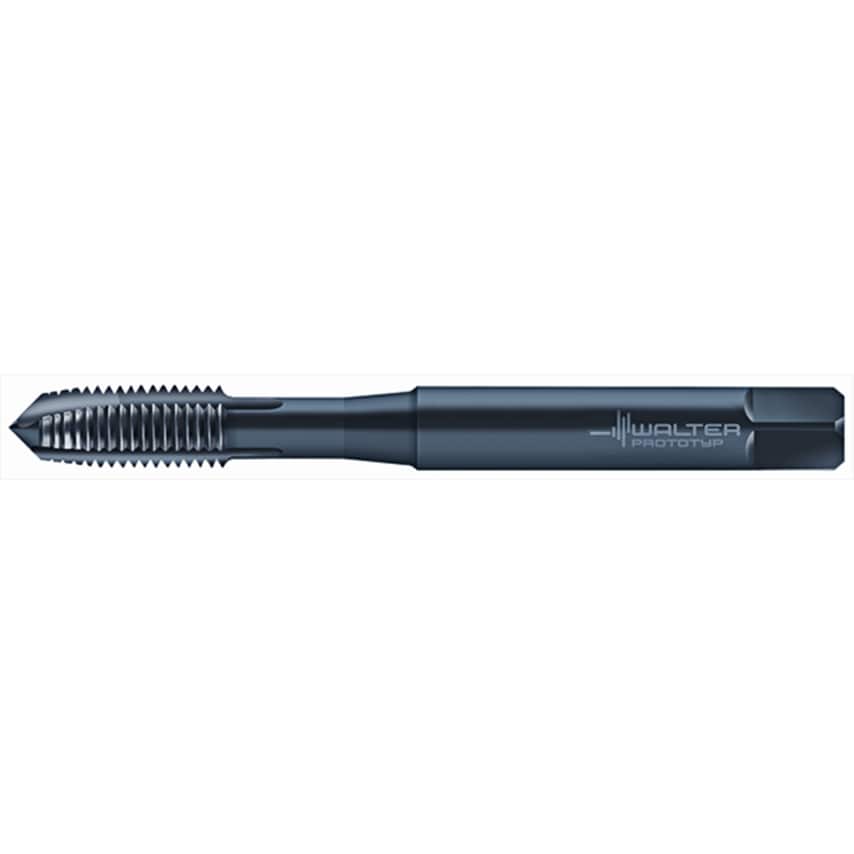

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD UNC/2B DIN 2184-1 Suitable for through hole VAP UNC #8-32 P=32
| Overall Length | 63mm |
| ISO Designation | M22213-UNC8 |
| Finish/Coating | VAP |
| MFR Part No. | 6149908 |
| Dimensions Standard | DIN 2184-1 |
| Series | Prototex\u00ae X\u00b7pert M |
| Driving Square Length | 6mm |
| Thread Size | 8in |
| ISO Category | M | P |
| Shank Diameter | 4.5mm |
| Teeth per Inch | 32 |
| Number of Grooves | 3 |
| Clamping Width | 3.4mm |
| Usable Length | 21mm |
| Cutting Edge Length | 12mm |
| Thread Standard | UNC |
| Tool Designation | M22213-UNC8 |
| Product Type | Machine Taps |
| Material | HSSE |
| Tap Type | Spiral Point |
