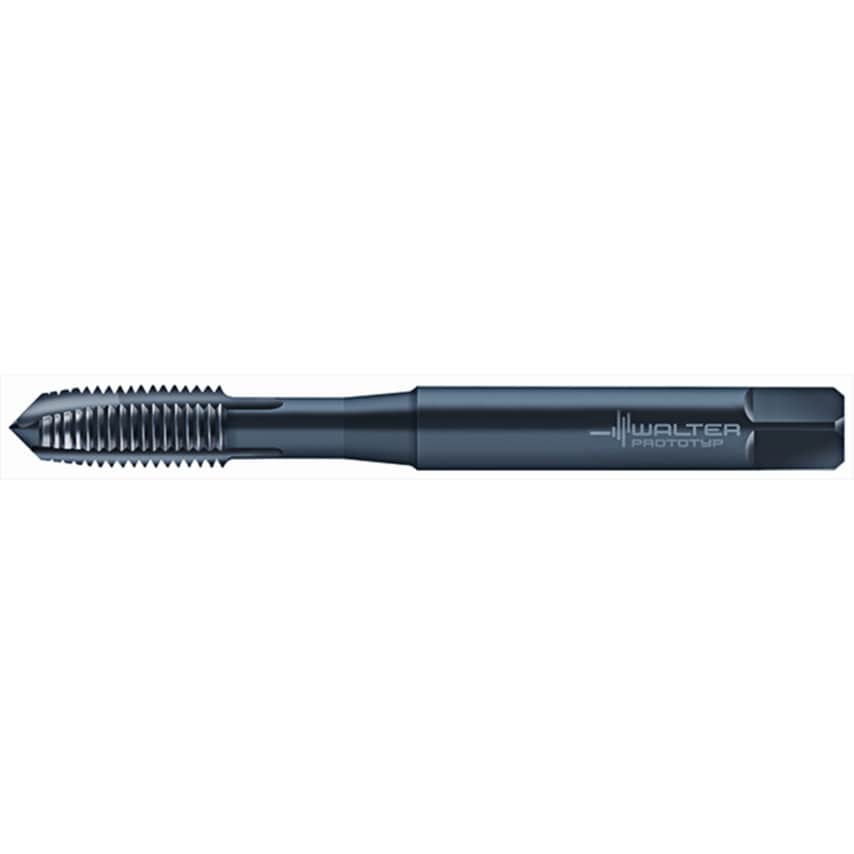

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD UNC/2B DIN 2184-1 Suitable for through hole VAP UNC #6-32 P=32
| Thread Standard | UNC |
| MFR Part No. | 6149907 |
| Finish/Coating | VAP |
| Clamping Width | 3mm |
| Shank Diameter | 4mm |
| Tap Type | Spiral Point |
| Driving Square Length | 6mm |
| Dimensions Standard | DIN 2184-1 |
| ISO Designation | M22213-UNC6 |
| Teeth per Inch | 32 |
| Series | Prototex\u00ae X\u00b7pert M |
| Cutting Edge Length | 11mm |
| Material | HSSE |
| Overall Length | 56mm |
| Number of Grooves | 2 |
| ISO Category | M | P |
| Product Type | Machine Taps |
| Thread Size | 6in |
| Usable Length | 20mm |
| Tool Designation | M22213-UNC6 |
