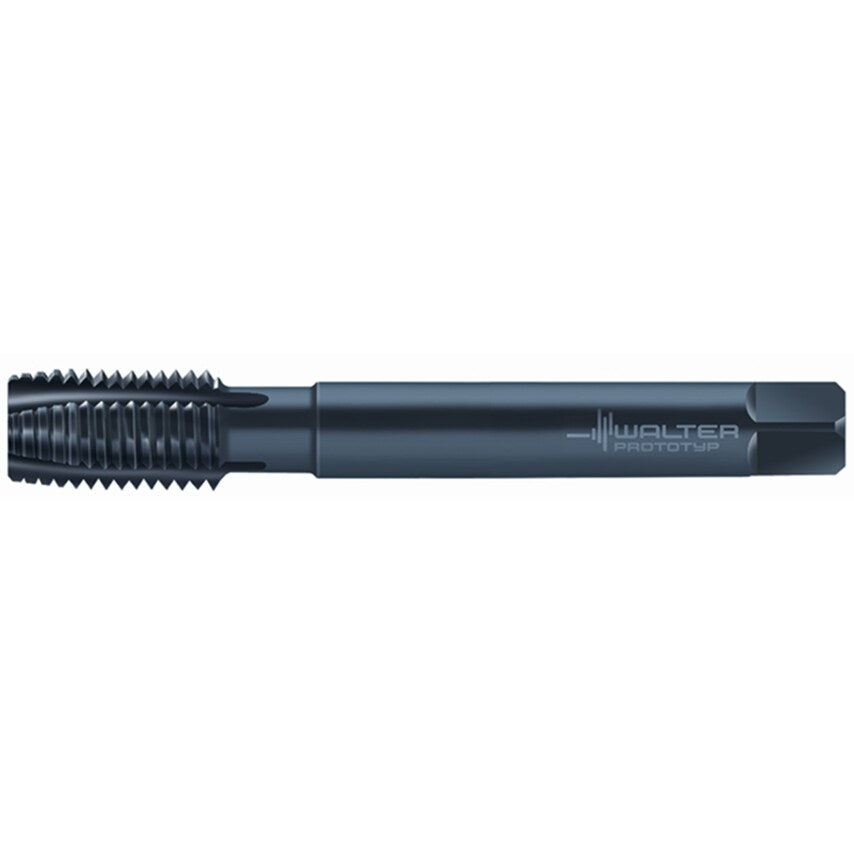

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD UNC/2B DIN 2184-1 Suitable for through hole VAP UNC 1/2-13 P=13
| Dimensions Standard | DIN 2184-1 |
| Product Type | Machine Taps |
| Teeth per Inch | 13 |
| Material | HSSE |
| Number of Grooves | 4 |
| Driving Square Length | 10mm |
| Tap Type | Spiral Point |
| ISO Category | M | P |
| Finish/Coating | VAP |
| Series | Prototex\u00ae X\u00b7pert M |
| Overall Length | 110mm |
| MFR Part No. | 6149921 |
| Shank Diameter | 9mm |
| Thread Size | 1/2in |
| Tool Designation | M22263-UNC1/2 |
| Usable Length | 83mm |
| ISO Designation | M22263-UNC1/2 |
| Thread Standard | UNC |
| Cutting Edge Length | 23mm |
| Clamping Width | 7mm |
