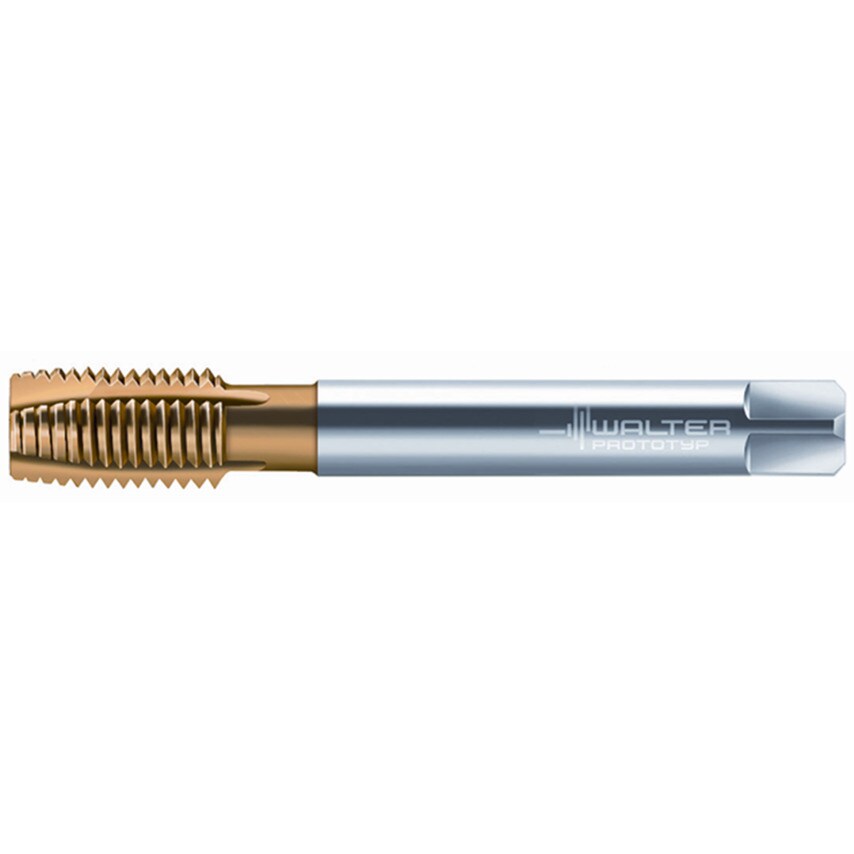

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD M/6H DIN 376 Suitable for through hole TIN M 16 P=0.0787in
| Tool Designation | P2036005-M16 |
| ISO Designation | 2036005-M16 |
| Series | Prototex\u00ae X\u00b7pert P |
| Tap Type | Spiral Point |
| Cutting Edge Length | 25mm |
| Number of Grooves | 3 |
| Finish/Coating | TiN |
| Shank Diameter | 12mm |
| Usable Length | 68mm |
| Overall Length | 110mm |
| Clamping Width | 9mm |
| Thread Pitch | 2mm |
| ISO Category | O |
| Pitch | 2mm |
| Material | HSSE |
| Thread Size | M16 |
| Thread Standard | Metric |
| Dimensions Standard | DIN 376 |
| MFR Part No. | 6149246 |
