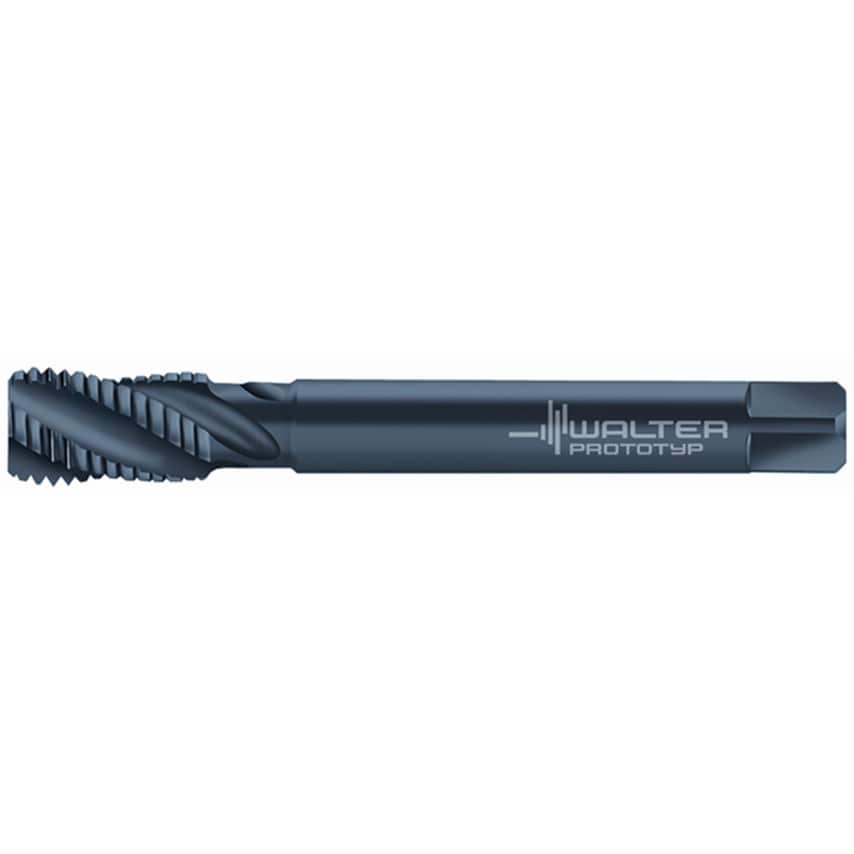

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD MF/6HX DIN 374 right hand flute 40 Suitable for blind hole VAP MF 8x0.5 P=0.0197in
| Tool Designation | M21563-M8X0.5 |
| Functional Length | 80mm |
| Usable Length | 57mm |
| Driving Square Length | 8mm |
| Connection Diameter | 6mm |
| Tap Type | Machine Tap |
| Cutting Edge Length | 10mm |
| Clamping Width | 4.9mm |
| MFR Part No. | 6149862 |
| Finish/Coating | VAP |
| Thread Size | MF 8x0.5 |
| Material | HSSE |
| Number of Grooves | 3 |
| Thread Pitch | 0.5mm |
