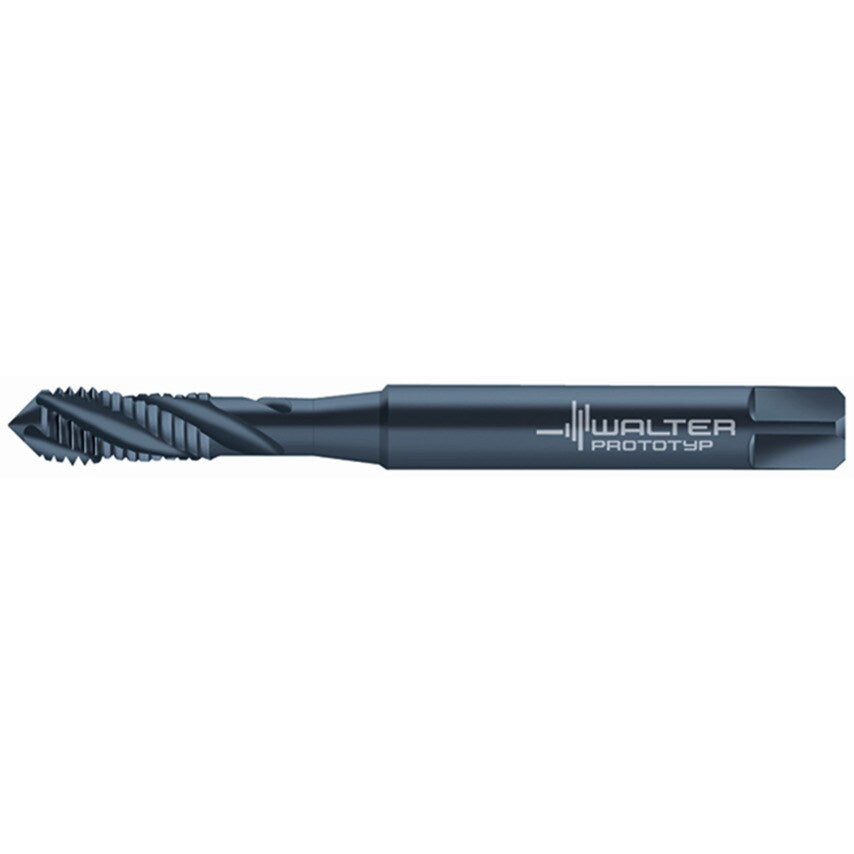

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UNC/2B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP UNC 1/4-20 P=20
| Teeth per Inch | 20 |
| MFR Part No. | 6149931 |
| Cutting Edge Length | 10mm |
| Tool Designation | M22513-UNC1/4 |
| Material | HSSE |
| Thread Standard | UNC |
| Thread Size | 1/4in |
| Dimensions Standard | DIN 2184-1 |
| Series | Paradur\u00ae X\u00b7pert M |
| Usable Length | 30mm |
| Functional Length | 80mm |
| Clamping Width | 5.5mm |
| ISO Designation | M22513-UNC1/4 |
| Tap Type | Spiral Flute |
| ISO Category | M | P |
| Connection Diameter | 7mm |
| Finish/Coating | VAP |
| Number of Grooves | 3 |
| Driving Square Length | 8mm |
