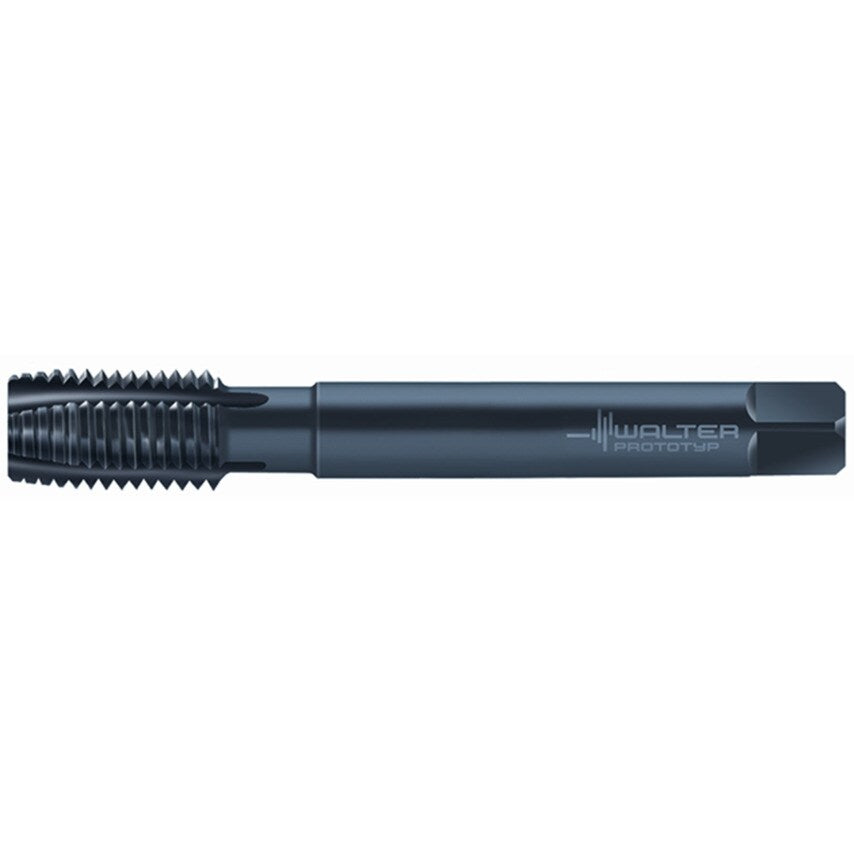

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD UNC/2B DIN 2184-1 Suitable for through hole VAP UNC 3/4-10 P=10
| Cutting Edge Length | 30mm |
| ISO Designation | M22263-UNC3/4 |
| Teeth per Inch | 10 |
| Tap Type | Spiral Point |
| MFR Part No. | 6149922 |
| Thread Standard | UNC |
| Shank Diameter | 14mm |
| Product Type | Machine Taps |
| ISO Category | M | P |
| Number of Grooves | 4 |
| Tool Designation | M22263-UNC3/4 |
| Material | HSSE |
| Clamping Width | 11mm |
| Finish/Coating | VAP |
| Driving Square Length | 14mm |
| Thread Size | 3/4in |
| Overall Length | 125mm |
| Dimensions Standard | DIN 2184-1 |
| Usable Length | 81mm |
| Series | Prototex\u00ae X\u00b7pert M |
