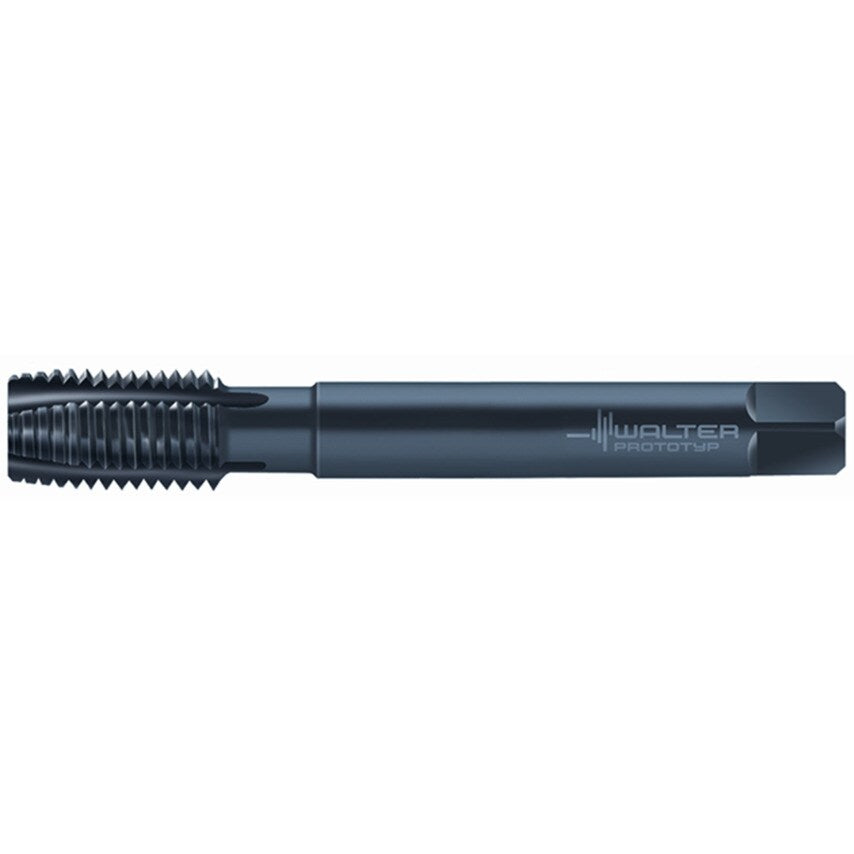

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD UNC/2B DIN 2184-1 Suitable for through hole VAP UNC 9/16-12 P=12
| Thread Standard | UNC |
| Clamping Width | 9mm |
| Material | HSSE |
| Shank Diameter | 11mm |
| Finish/Coating | VAP |
| Tool Designation | M22263-UNC9/16 |
| Cutting Edge Length | 25mm |
| Overall Length | 110mm |
| Thread Size | UNC 9/16-12 |
| Number of Grooves | 4 |
| Driving Square Length | 12mm |
| Usable Length | 81mm |
| MFR Part No. | 6149928 |
