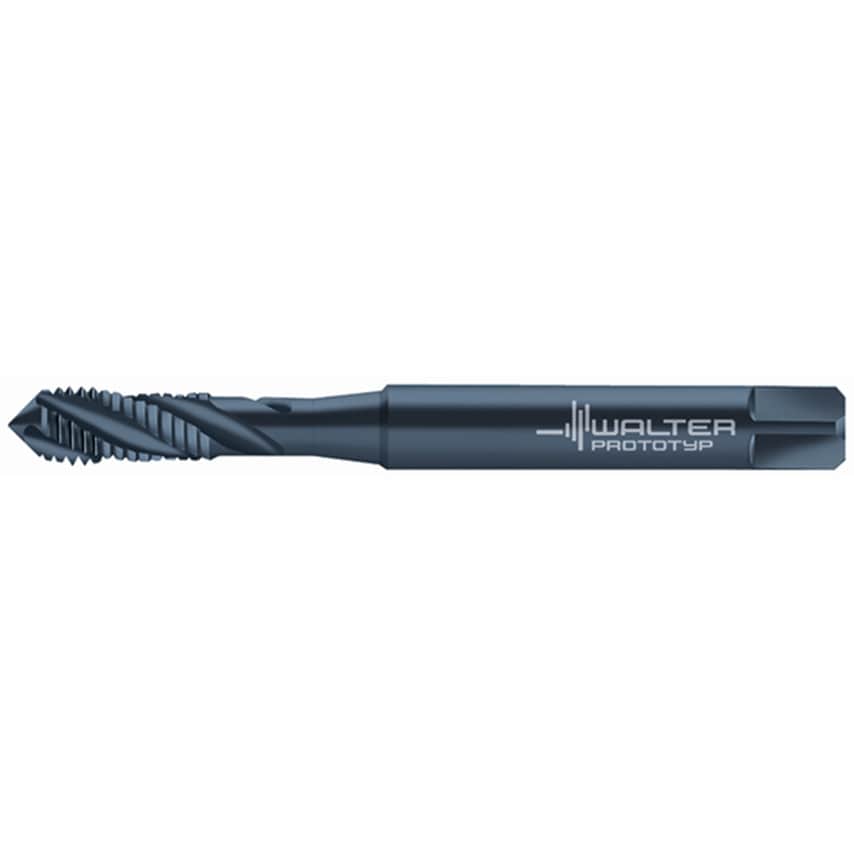

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UNC/2B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP UNC #3-48 P=48
| Material | HSSE |
| Tool Designation | M22513-UNC3 |
| Number of Grooves | 3 |
| Usable Length | 12.5mm |
| MFR Part No. | 6149933 |
| Functional Length | 50mm |
| Cutting Edge Length | 4mm |
| Driving Square Length | 5mm |
| Thread Standard | UNC |
| Thread Size | UNC #3-48 |
| Connection Diameter | 2.8mm |
| Finish/Coating | VAP |
| Clamping Width | 2.1mm |
