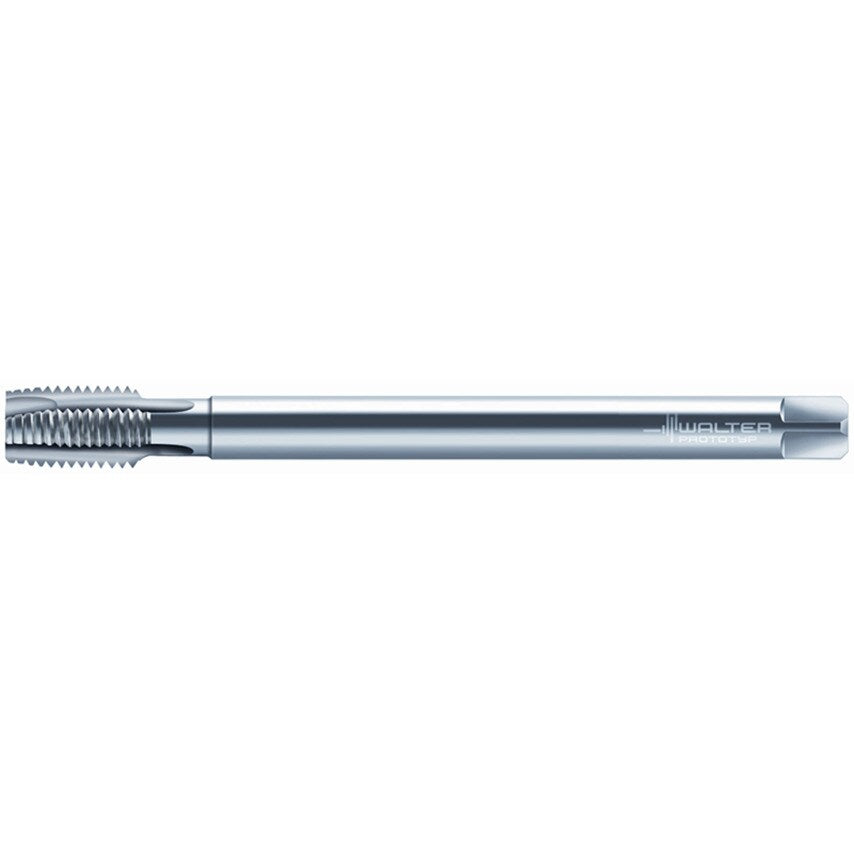

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD M/6H ~DIN 376 XL Suitable for through hole M 5 P=0.0315in
| Thread Pitch | 0.8mm |
| Material | HSSE |
| Driving Square Length | 6mm |
| Tool Designation | P203603-M5 |
| Thread Size | M 5 |
| Clamping Width | 2.7mm |
| MFR Part No. | 6149260 |
| Cutting Edge Length | 13mm |
| Usable Length | 104mm |
| Shank Diameter | 3.5mm |
| Overall Length | 125mm |
| Number of Grooves | 3 |
