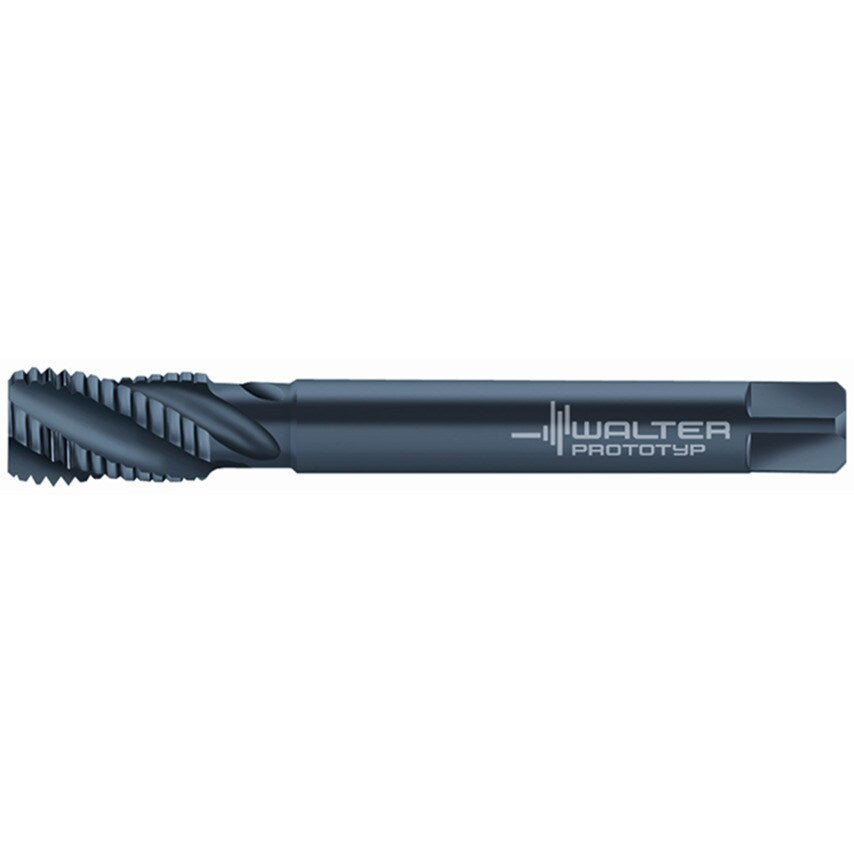

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UNC/2B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP UNC 5/16-18 P=18
| Material | HSSE |
| Connection Diameter | 6mm |
| Thread Size | 5/16in |
| Clamping Width | 4.9mm |
| Driving Square Length | 8mm |
| Number of Grooves | 3 |
| Tool Designation | M22563-UNC5/16 |
| Usable Length | 67mm |
| Dimensions Standard | DIN 2184-1 |
| Series | Paradur\u00ae X\u00b7pert M |
| ISO Category | M | P |
| ISO Designation | M22563-UNC5/16 |
| Teeth per Inch | 18 |
| Finish/Coating | VAP |
| Tap Type | Spiral Flute |
| MFR Part No. | 6149953 |
| Thread Standard | UNC |
| Cutting Edge Length | 12mm |
| Functional Length | 90mm |
