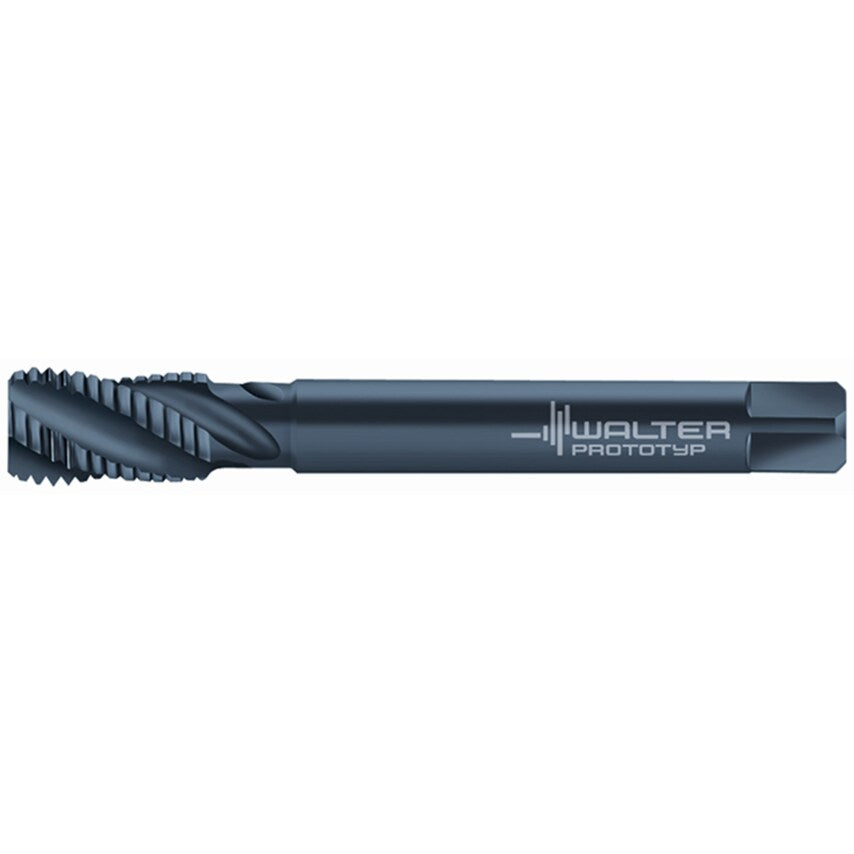

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UNC/2B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP UNC 1"-8 P=8
| Connection Diameter | 18mm |
| Thread Size | UNC 1in-8 |
| Driving Square Length | 17mm |
| Clamping Width | 14.5mm |
| Thread Standard | UNC |
| Material | HSSE |
| Usable Length | 113mm |
| Number of Grooves | 4 |
| MFR Part No. | 6149949 |
| Tool Designation | M22563-UNC1 |
| Finish/Coating | VAP |
| Cutting Edge Length | 30mm |
| Functional Length | 160mm |
