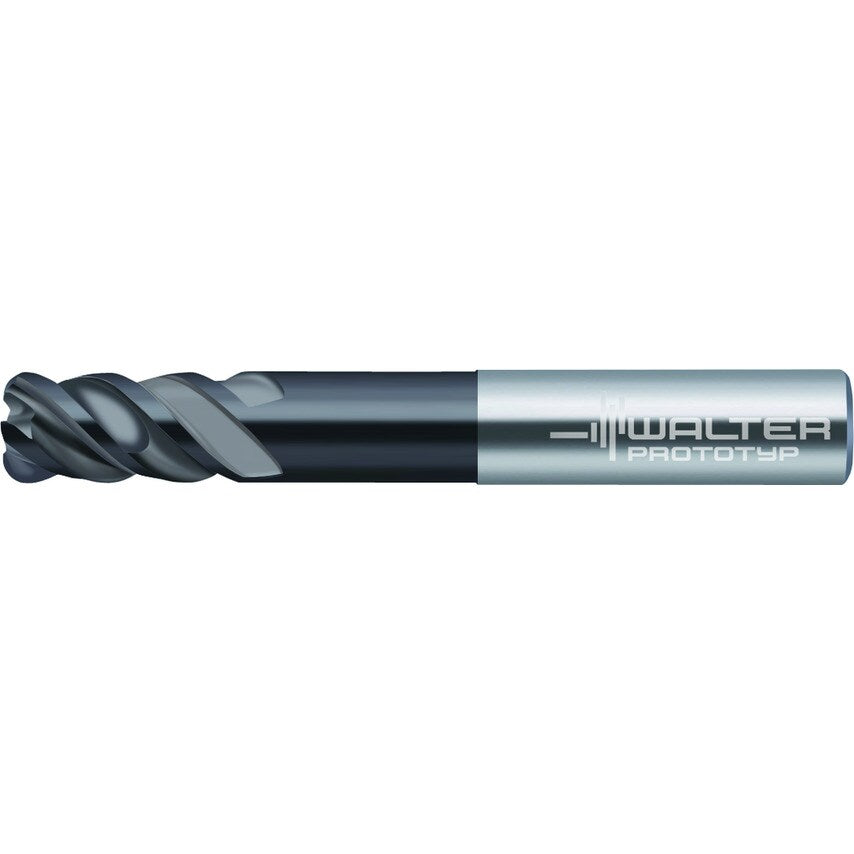

Solid carbide shoulder/slot mills Supreme DIN 6535 HA shank metric flute helix angle 50 Long reach Type N 50, long center cutting capability WK40TF Dc=0.4724in R=0.1181in Z=4
| Shank Diameter Tolerance | h5 |
| Shank Diameter | 12mm |
| Cutting Edge Length | 26mm |
| Product Type | Shoulder/Slot Mills |
| Length of Cut | 53mm |
| Standards Met | DIN 6535 HA |
| Milling Cutter Type | End Mills |
| Cutting Edge Diameter | 12mm |
| Plunge Type | Centre Cutting |
| Overall Length | 100mm |
| System of Measurement | Metric |
| Cutter Style | Square End |
| Tool Designation | MC326-12.0A4L300C-WK40TF |
| Material | Solid Carbide |
| Flute Length | 26mm |
| MFR Part No. | 6579431 |
| Number of Flutes | 4 |
| Cutter Diameter | 12mm |
| Corner Radius | 3mm |
| Length Type | Regular |
| Flute Type | Helical |
| Shank Type | DIN 6535 HA |
| Functional Length | 55mm |
| Neck Diameter | 11.4mm |
| Series | MC326 |
| Finish/Coating | TiAlN |
| Helix Angle | 50\u00b0 |
| ISO Designation | S |
| Number of Teeth | 4 |
| Coolant Delivery | External |
