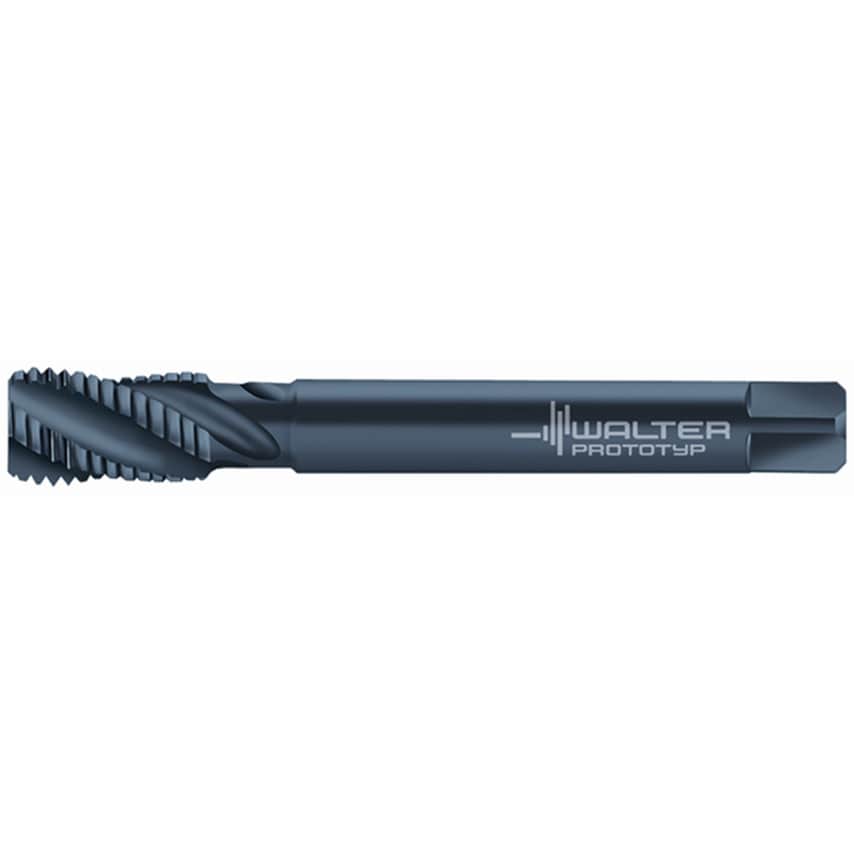

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UNC/2B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP UNC 9/16-12 P=12
| Number of Grooves | 4 |
| Thread Size | UNC 9/16-12 |
| Functional Length | 110mm |
| Connection Diameter | 11mm |
| Usable Length | 81mm |
| Material | HSSE |
| Driving Square Length | 12mm |
| Thread Standard | UNC |
| Cutting Edge Length | 20mm |
| MFR Part No. | 6149957 |
| Clamping Width | 9mm |
| Finish/Coating | VAP |
| Tool Designation | M22563-UNC9/16 |
