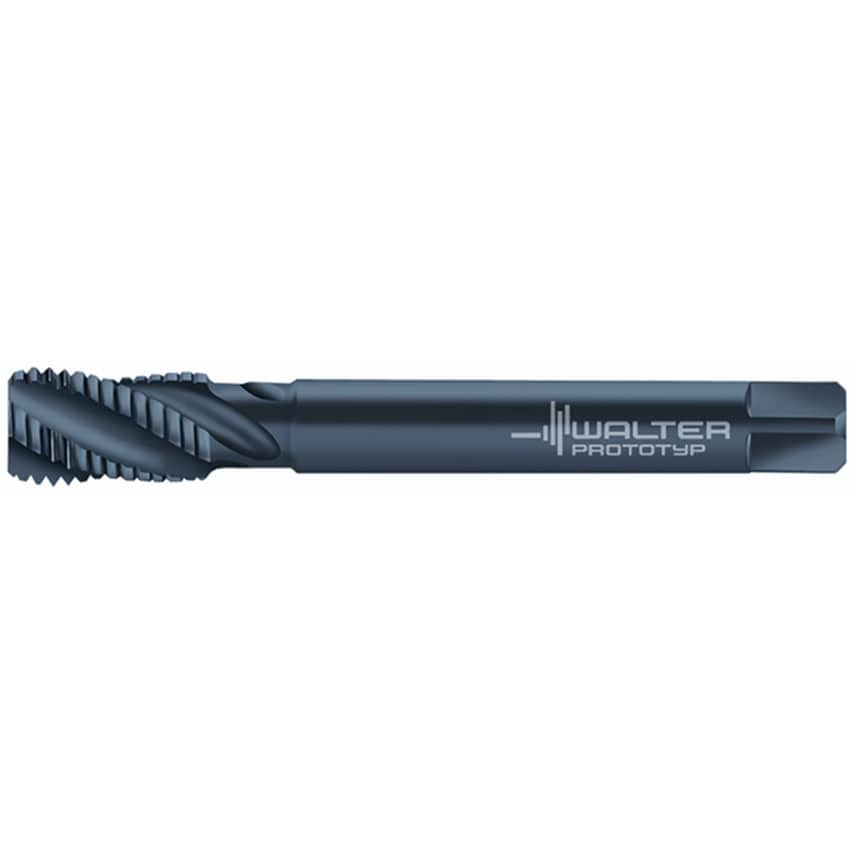

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UNC/2B DIN 2184-1 right hand flute 40 Suitable for blind hole VAP UNC 7/16-14 P=14
| Teeth per Inch | 14 |
| Tool Designation | M22563-UNC7/16 |
| Dimensions Standard | DIN 2184-1 |
| ISO Category | M | P |
| Number of Grooves | 3 |
| ISO Designation | M22563-UNC7/16 |
| MFR Part No. | 6149955 |
| Clamping Width | 6.2mm |
| Material | HSSE |
| Thread Size | 7/16in |
| Usable Length | 76mm |
| Connection Diameter | 8mm |
| Series | Paradur\u00ae X\u00b7pert M |
| Cutting Edge Length | 15mm |
| Driving Square Length | 9mm |
| Functional Length | 100mm |
| Finish/Coating | VAP |
| Thread Standard | UNC |
| Tap Type | Spiral Flute |
