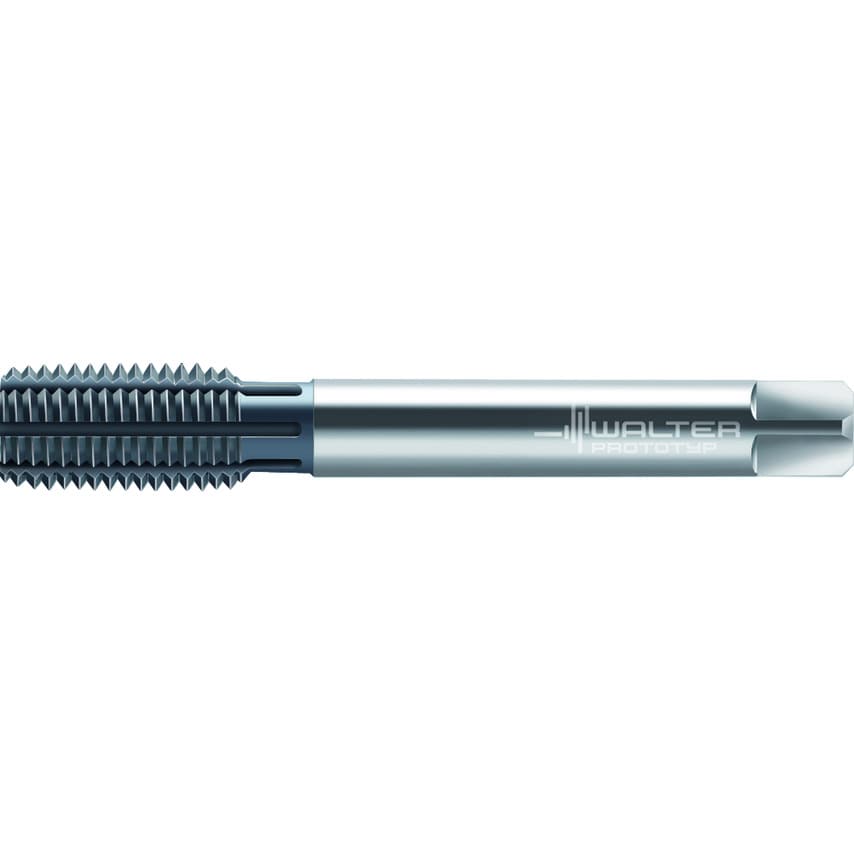

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole WW60BA Suitable for through hole M 12 P=0.0689in
| Clamping Width | 7mm |
| Driving Square Length | 10mm |
| Thread Pitch | 1.75mm |
| Usable Length | 83mm |
| Cutting Edge Length | 16mm |
| MFR Part No. | 7427353 |
| Connection Diameter | 9mm |
| Thread Size | M 12 |
| Tool Designation | TC420-M12-L6-WW60BA |
| Number of Grooves | 6 |
| Functional Length | 110mm |
