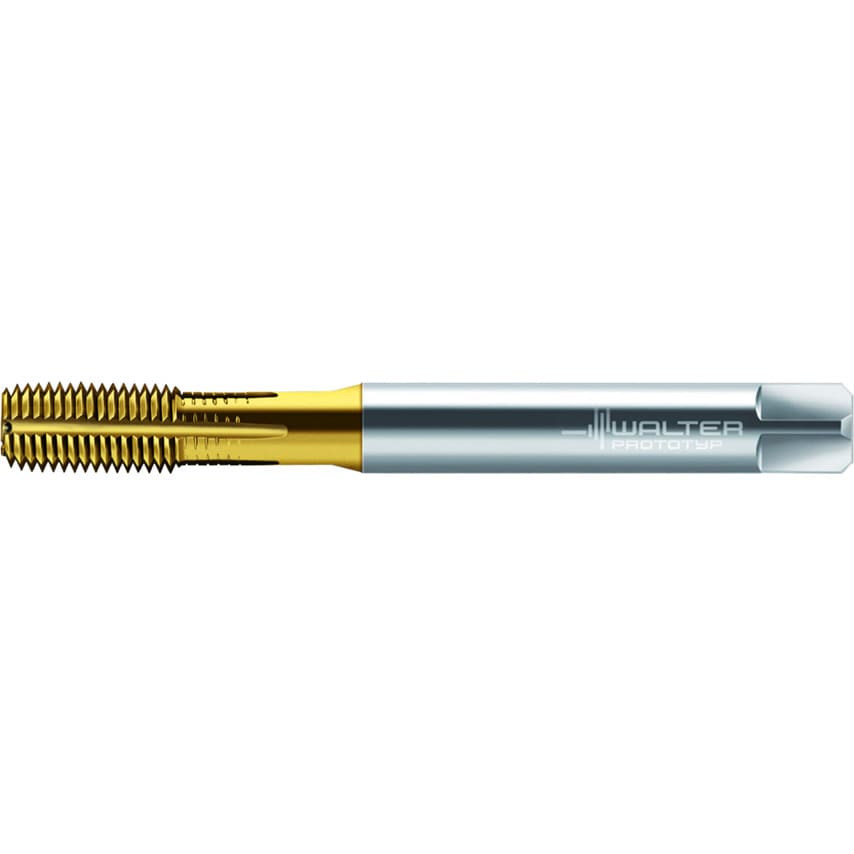

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole WW60AD Suitable for through hole M 10 P=0.0591in
| MFR Part No. | 7427360 |
| Usable Length | 39mm |
| Connection Diameter | 10mm |
| Tool Designation | TC420-M10-C2-WW60AD |
| Clamping Width | 8mm |
| Driving Square Length | 11mm |
| Number of Grooves | 6 |
| Thread Pitch | 1.5mm |
| Thread Size | M 10 |
| Functional Length | 100mm |
| Cutting Edge Length | 15mm |
